M.A. Ford.

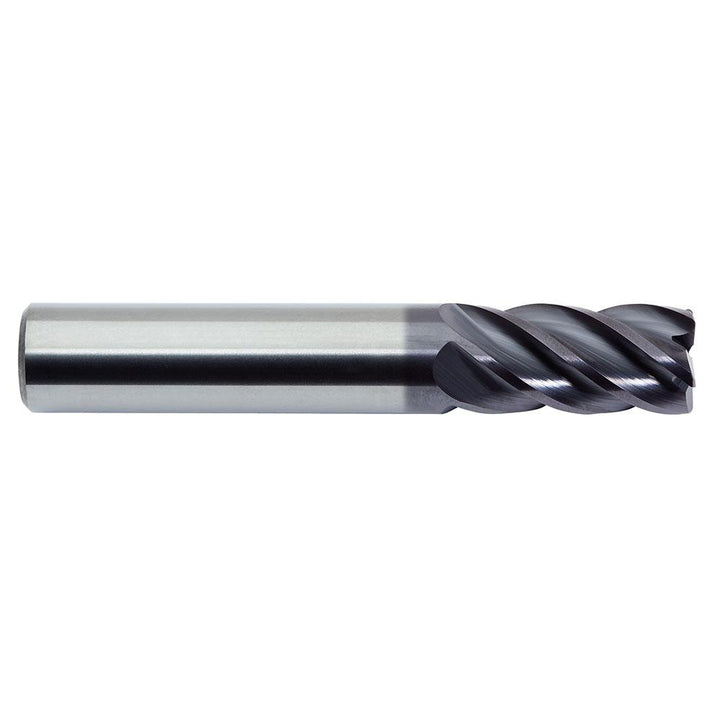

3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 17875018AW

MFR# 17875018AWSeries 178

$359.74List $461.37 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The M.A. Ford. 17875018AW is a 3/4 5-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/2 length of cut, 4 overall length. Series 178.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.1250

Corner radius tolerance+0.00200 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleMedium

Length of cut in1-1/2

Length typeRegular

Manufacturers catalog number17875018AW

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance+0.0000 to -0.0030 in

Number of flutes5

Overall length in4

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in1-1/2

Shank diameter in3/4

Shank diameter tolerance+0.0000 to -0.0005 in

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
