M.A. Ford.

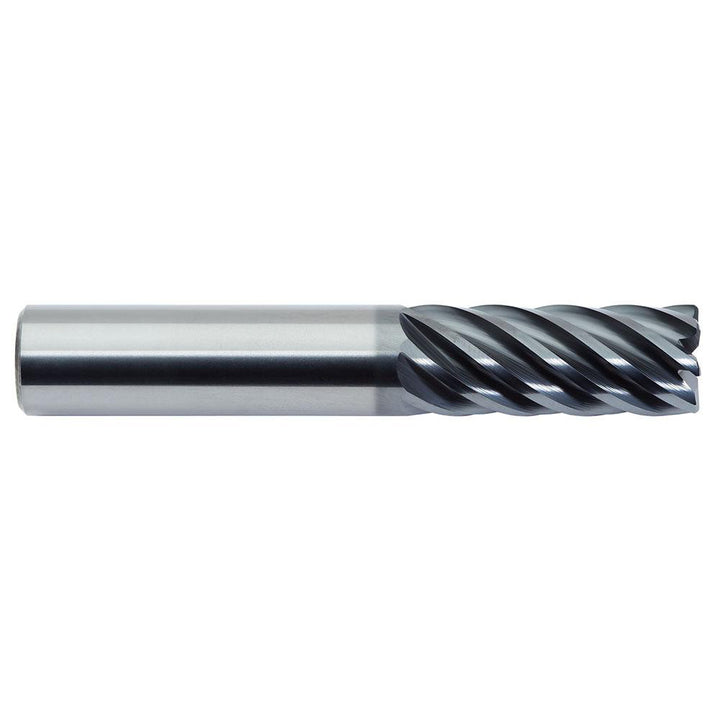

7-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 18031501B
MFR# 18031501BSeries 180
$67.09List $86.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
MaterialSolid Carbide
Description
The M.A. Ford. 18031501B is a 7-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, superalloys & titanium. Series 180.
Specifications
CentercuttingNo
ChipbreakerNo
Coolant throughNo
Corner radius (mm)0.50
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleMedium
Length of cut1.6250
Length typeShort
Manufacturers catalog number18031501B
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material removal typeFinishing
Mill diameter (mm)8.00
Mill diameter tolerance+0.000 to -0.022 mm
Number of flutes7
Overall length (mm)63.00
PitchSuper Close
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Reach length (mm)19.00
Shank diameter (mm)8.00
Shank diameter tolerance+0.000 to -0.009 mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
