M.A. Ford.

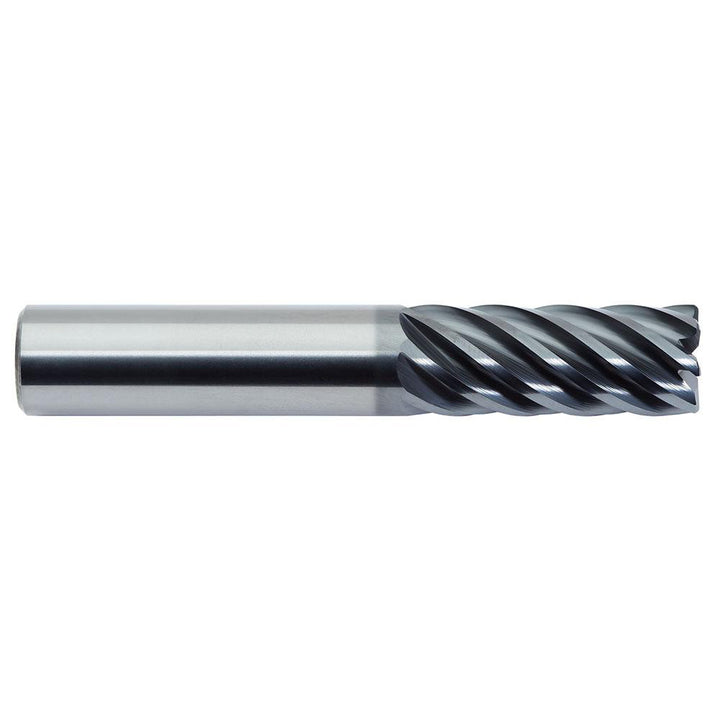

1/2" 7-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 18050018B

MFR# 18050018BSeries 180

$139.19List $178.52 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes7

MaterialSolid Carbide

Description

The M.A. Ford. 18050018B is a 1/2 7-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, superalloys & titanium. 1-1/4 length of cut, 3 overall length. Series 180.

Specifications

CentercuttingNo

ChipbreakerNo

Coolant throughNo

Corner radius in1/8

Corner radius tolerance+0.00200 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle38

Helix styleMedium

Length of cut in1-1/4

Length typeRegular

Manufacturers catalog number18050018B

Material applicationSteel; Stainless Steel; Superalloys & Titanium

Material removal typeFinishing

Maximum helix angle38

Mill diameter in1/2

Mill diameter tolerance+0.0000 to -0.0011 in

Minimum helix angle38

Number of flutes7

Overall length in3

PitchSuper Close

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length in1-1/4

Shank diameter in1/2

Shank diameter tolerance+0.0000 to -0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
