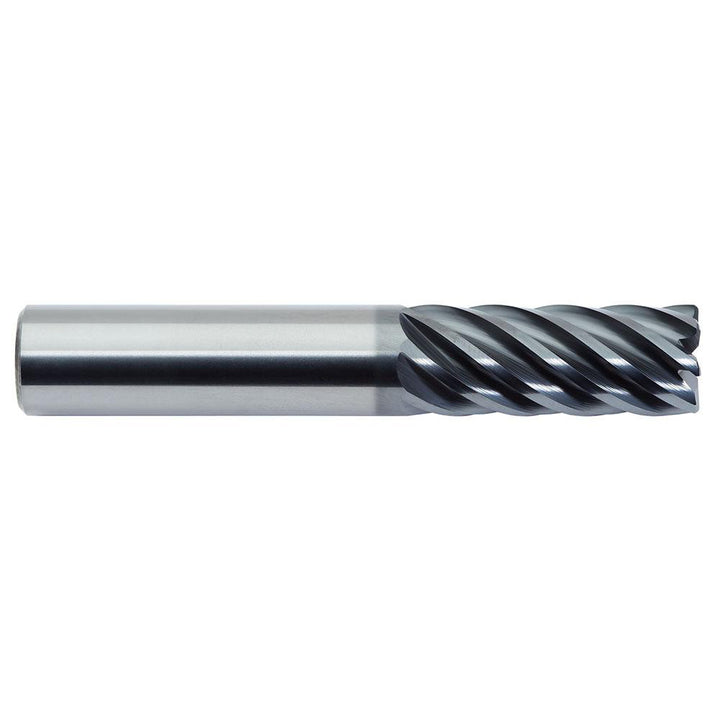

5/8in" 7-Flute Solid Carbide Corner Radius End Mill, ALtima Blaze - M.A. Ford. 18062502B

M.A. Ford.

5/8in" 7-Flute Solid Carbide Corner Radius End Mill, ALtima Blaze - M.A. Ford. 18062502B

MFR# 18062502BSeries 180

$249.80List $320.37 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8in
Flutes7
MaterialSolid Carbide
CoatingALtima Blaze

Description

The M.A. Ford. 18062502B is a 5/8in 7-flute Solid Carbide corner radius end mill with a ALtima Blaze finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 3/4in length of cut, 3-1/2in overall length. Series 180.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishALtima Blaze
Coolant throughNo
Corner radius0.0150
Corner radius tolerance+0.0012 to -0.0012 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3/4in
Length typeStub
Manufacturers catalog number18062502B
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material removal typeFinishing
Mill diameter in5/8in
Mill diameter tolerance+0.0000/-0.0030 in
Number of flutes7
Overall length in3-1/2in
PitchSuper Close
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Reach length in3/4
Shank diameter in5/8in
Shank diameter tolerance+0.0000/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
