M.A. Ford.

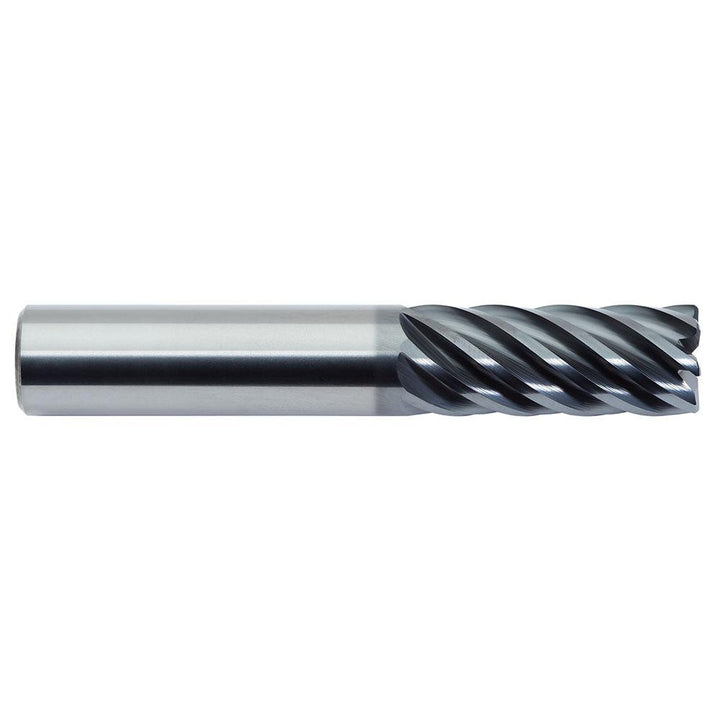

5/8" 7-Flute Solid Carbide Square End Mill, AlCrN - M.A. Ford. 18062510B

MFR# 18062510BSeries 180

$247.21List $317.06 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes7

MaterialSolid Carbide

CoatingAlCrN

Description

The M.A. Ford. 18062510B is a 5/8 7-flute Solid Carbide (Micrograin) square end mill with a ALtima Blaze finish for longer tool life. Suited for steel, stainless steel, high-temp alloy. 1-1/4 length of cut, 3-1/2 overall length. Series 180.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlCrN

Coating finish familyAlCrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance+0.0000 to -0.00106 in

Number of flutes7

Overall length in3-1/2

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy

Shank diameter in5/8

Shank diameter tolerance+0/-0.00043 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
