M.A. Ford.

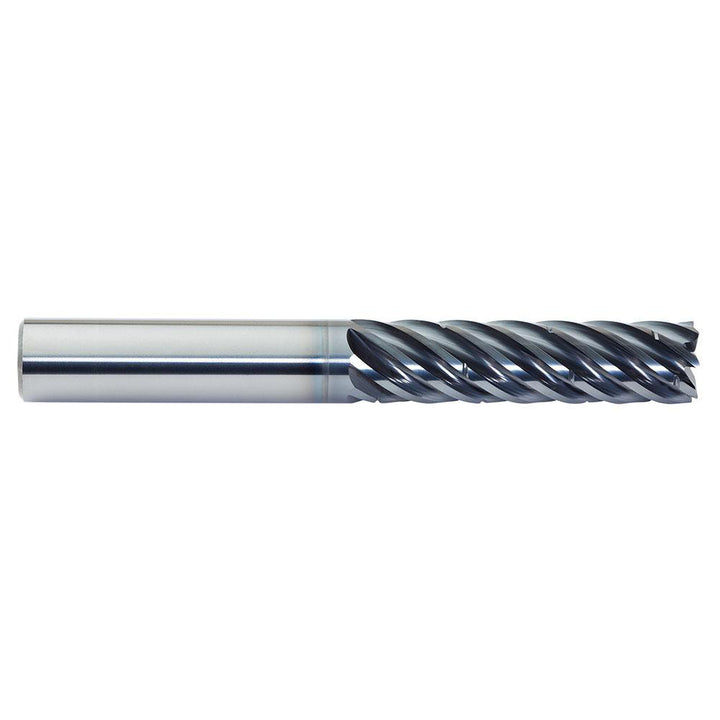

5/8" 7-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 180L6254B

MFR# 180L6254BSeries 180

$377.69List $484.41 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes7

MaterialSolid Carbide

Description

The M.A. Ford. 180L6254B is a 5/8 7-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, superalloys & titanium. 2-1/4 length of cut, 5 overall length. Series 180.

Specifications

CentercuttingNo

ChipbreakerYes

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleMedium

Length of cut in2-1/4

Length typeShort

Manufacturers catalog number180L6254B

Material applicationSteel; Stainless Steel; Superalloys & Titanium

Material removal typeFinishing

Mill diameter in5/8

Mill diameter tolerance+0.0000 to -0.0011 in

Number of flutes7

Overall length in5

PitchSuper Close

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Reach length in2-1/4

Shank diameter in5/8

Shank diameter tolerance+0.0000 to -0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
