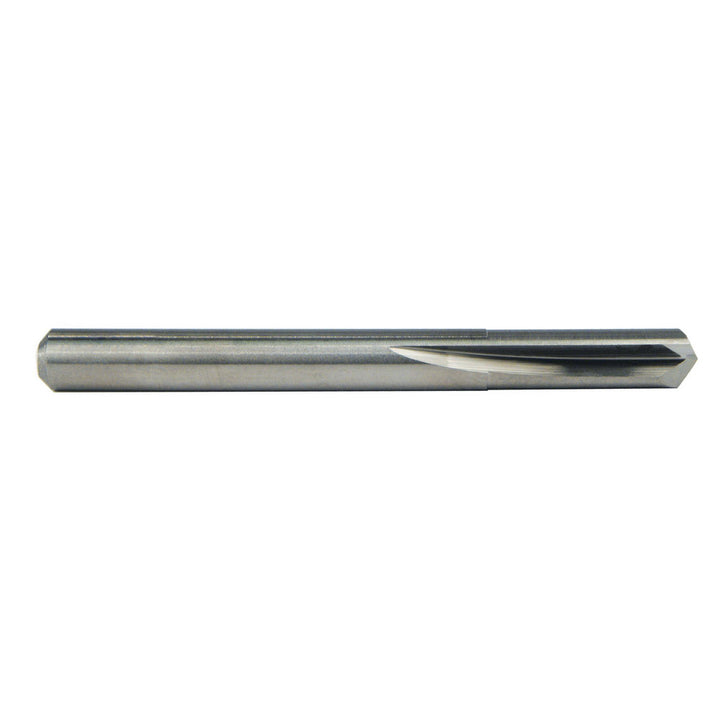

27/64" Carbide Drill Bit, 135° point - M.A. Ford. 20042180

M.A. Ford.

27/64" Carbide Drill Bit, 135° point - M.A. Ford. 20042180

MFR# 20042180Series 200

$102.58List $131.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/64
Flutes2

Description

The M.A. Ford. 20042180 is a 27/64" Carbide drill bit, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1 flute length, 2-3/4 overall length. Series 200.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in27/64
Drill bit typeStraight-Flute
Drill point angle135
Flute length in1
Number of flutes2
Overall length in2-3/4
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Ceramic; Glass; Hardened Materials; High Temperature Alloy; Stainless Steel; Titanium
Shank diameter in27/64
Shank length in1-3/4
StandardsDIN
Tool applicationHolemaking
Tool materialCarbide
Web thinningWeb-Thinned
