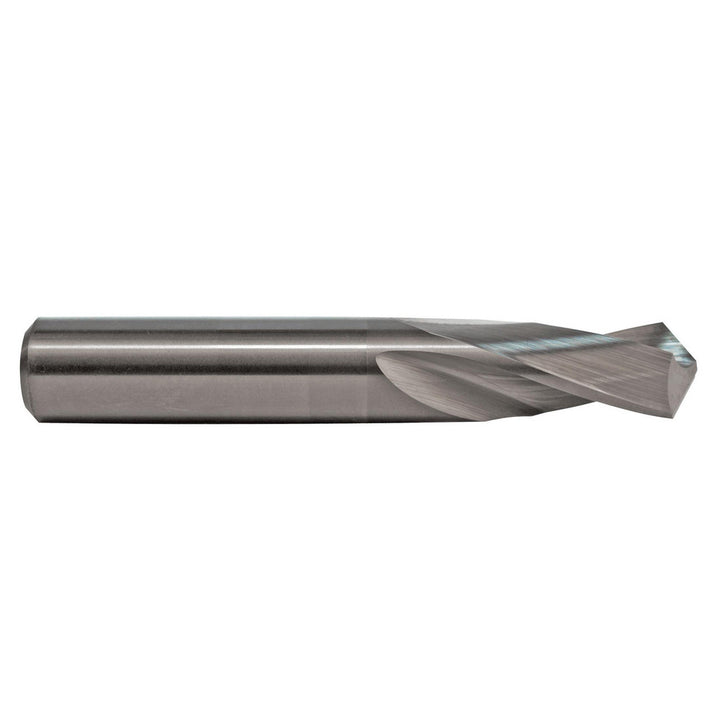

1/16" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20606250

M.A. Ford.

1/16" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20606250

MFR# 20606250Series 206

$8.81List $11.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/16
Flutes2

Description

The M.A. Ford. 20606250 is a 1/16" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3/8 flute length, 1-1/2 overall length. Series 206.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in1/16
Drill bit size range0.0000 to 0.1000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length in3/8
Flute typeSpiral
Number of flutes2
Overall length in1-1/2
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.0625
Shank length in1-1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
