25/64" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20639060

M.A. Ford.

25/64" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 20639060

MFR# 20639060Series 206

$69.86List $89.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size25/64
Flutes2

Description

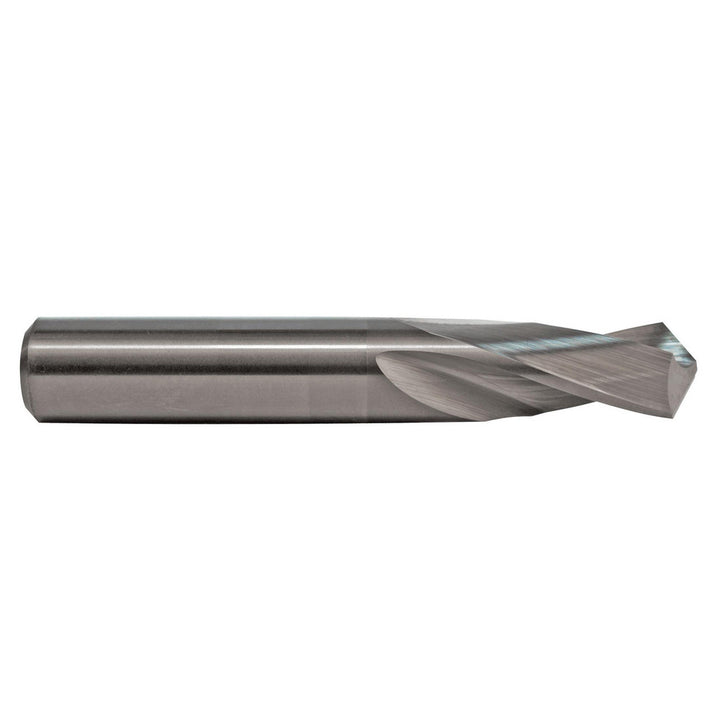

The M.A. Ford. 20639060 is a 25/64" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 1-1/4 flute length, 2-3/4 overall length. Series 206.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in25/64
Drill bit size range0.3500 to 0.4000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in2-3/4
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.3906
Shank length in1-1/2
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
