3/16" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20718750

M.A. Ford.

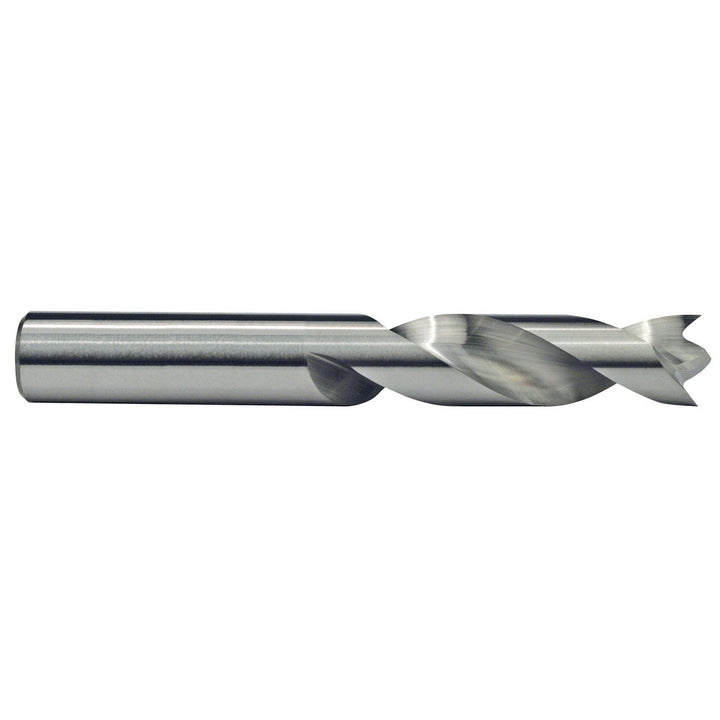

3/16" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20718750

MFR# 20718750Series 207

$41.39List $53.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2

Description

The M.A. Ford. 20718750 is a 3/16" Solid Carbide Screw Machine drill bit. Suited for non-ferrous metal. 15/16 flute length, 2-3/16 overall length. Series 207.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in3/16
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Flute by diameter ratio3xD
Flute length in15/16
Flute typeSpiral
Number of flutes2
Overall length in2-3/16
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.1875
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
