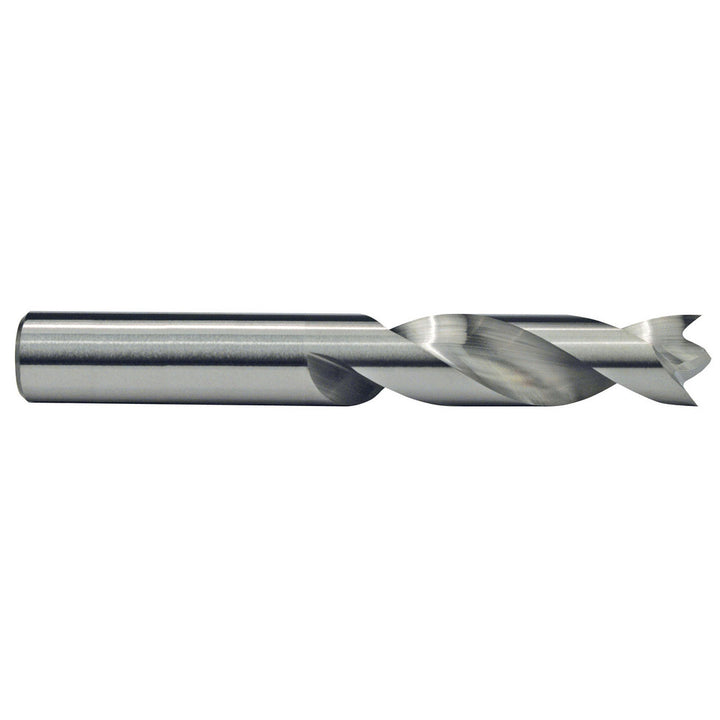

13/64" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20720310

M.A. Ford.

13/64" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20720310

MFR# 20720310Series 207

$50.44List $64.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2

Description

The M.A. Ford. 20720310 is a 13/64" Solid Carbide Screw Machine drill bit. Suited for non-ferrous metal. 1 flute length, 2-1/4 overall length. Series 207.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in13/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Flute by diameter ratio3xD
Flute length in1
Flute typeSpiral
Number of flutes2
Overall length in2-1/4
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2031
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
