1/4" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20725000

M.A. Ford.

1/4" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20725000

MFR# 20725000Series 207

$58.69List $75.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/4
Flutes2

Description

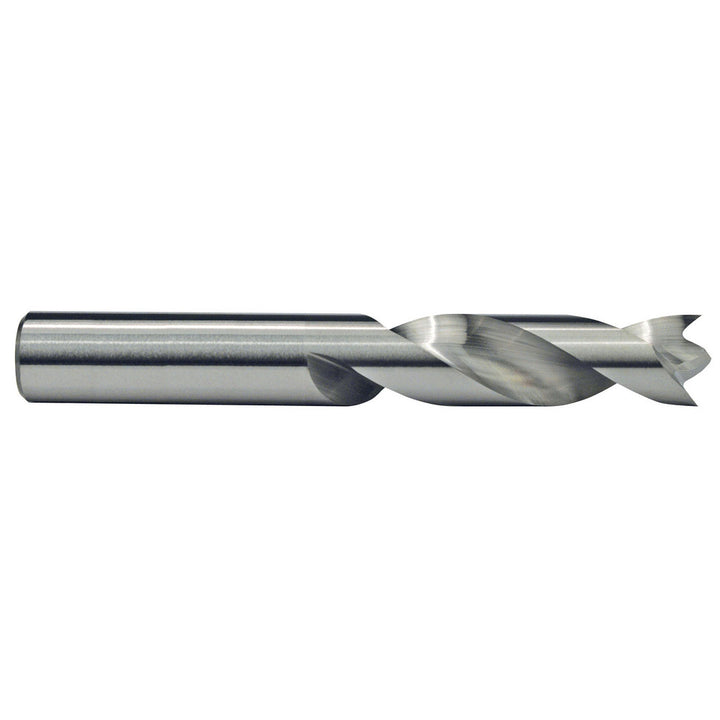

The M.A. Ford. 20725000 is a 1/4" Solid Carbide Screw Machine drill bit. Suited for non-ferrous metal. 1-1/4 flute length, 2-1/2 overall length. Series 207.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Flute by diameter ratio3xD
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2500
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
