M.A. Ford.

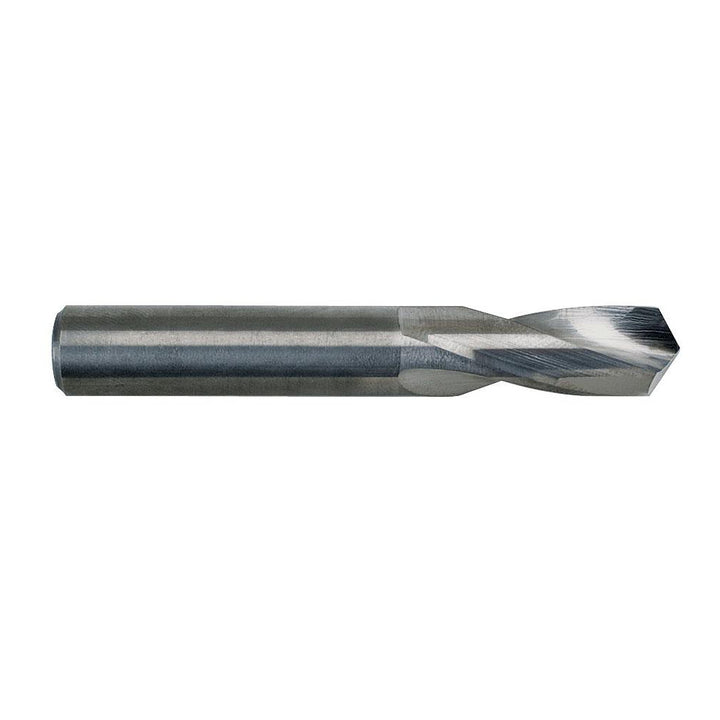

0.1772" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 22617720
MFR# 22617720Series 226
$24.10List $30.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 22617720 is a 0.1772" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 226.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.000 to -0.013 mm
Drill bit size0.1772
Drill bit size range0.1500 to 0.2000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Number of flutes2
Overall length2.2835
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.1772
Shank length1.3386
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
