M.A. Ford.

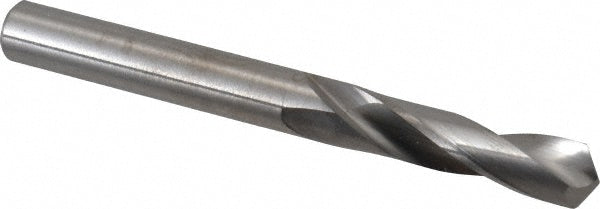

0.3150" Solid Carbide Drill Bit, 118° point - M.A. Ford. 22631500
MFR# 22631500Series 226
$55.26List $70.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The M.A. Ford. 22631500 is a 0.3150" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metals, plastics. Series 226.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.000 to -0.013 mm
Drill bit size0.3150
Drill bit size range0.3000 to 0.3500
Drill point angle118
Flute length (mm)37.00
Flute typeSpiral
Overall length3.1102
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metals; Plastics
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
