1/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 27712500B

M.A. Ford.

1/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 27712500B

MFR# 27712500BSeries 277

$25.80List $33.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide

Description

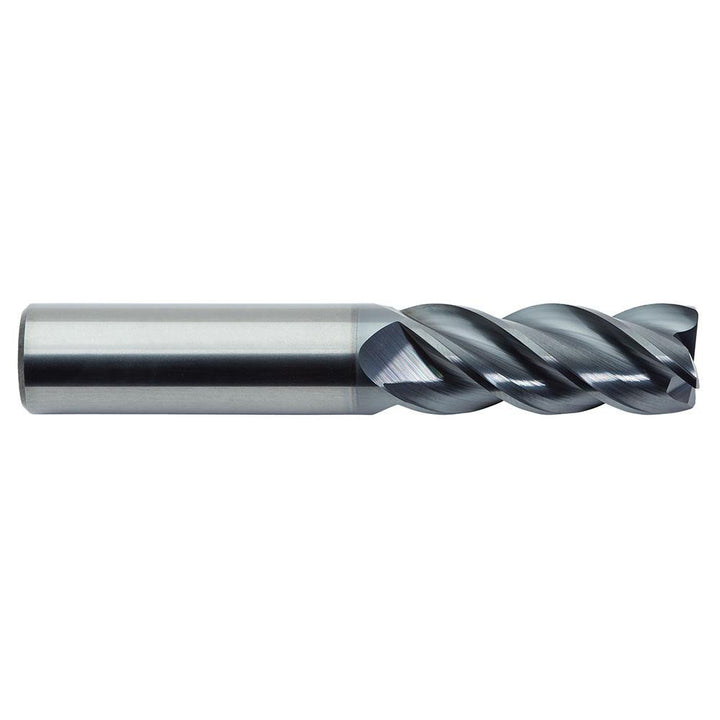

The M.A. Ford. 27712500B is a 1/8 4-flute Solid Carbide (Micrograin) square end mill. 1/8 length of cut, 1-1/2 overall length. Series 277.

Specifications

CentercuttingYes
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in1/8
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter0.13
Shank diameter tolerance+0/-0.00031 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
