M.A. Ford.

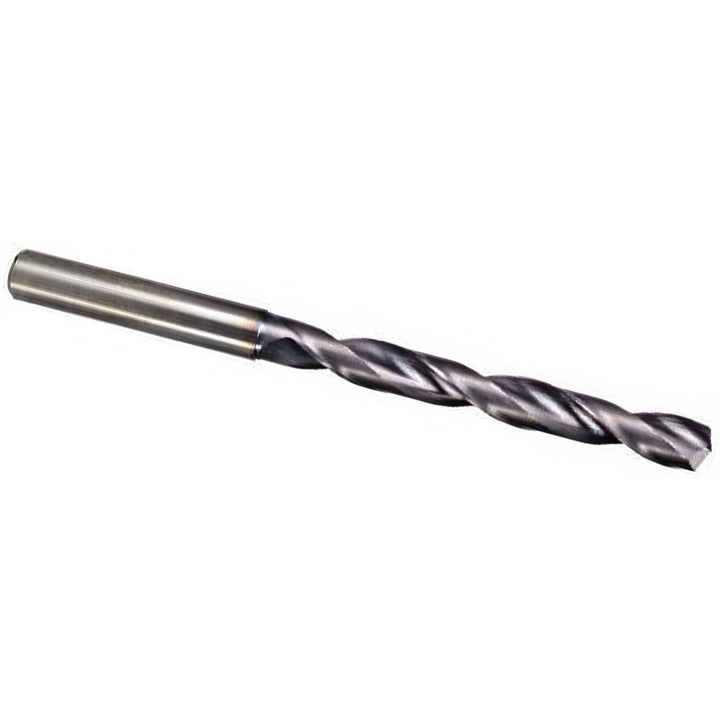

1/8" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL1250A
MFR# 2XDCL1250ASeries 2XDCL
$118.29List $144.59
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
CoatingTiN
Description
The M.A. Ford. 2XDCL1250A is a 1/8" Solid Carbide drill bit with a TiN finish, 142° point. 1-1/2 flute length. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit size in1/8
Drill point angle degrees142
Drill point length0.0190
Flute length in1-1/2
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth1.0000
Overall length3-1/2
Shank diameter in1/8
Shank length2.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
