M.A. Ford.

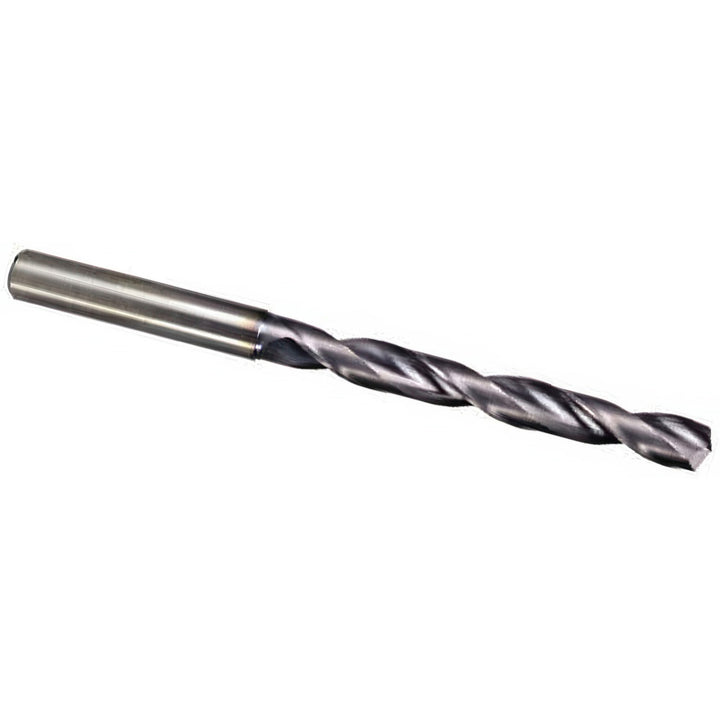

0.1811" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL1811A
MFR# 2XDCL1811ASeries 2XDCL
$102.26List $120.66
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The M.A. Ford. 2XDCL1811A is a 0.1811" Solid Carbide drill bit with a TiN finish, 142° point. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit size0.1811
Drill point angle degrees142
Drill point length (mm)0.71
Flute length (mm)45.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth (mm)36.00
Overall length (mm)100.00mm
Shank diameter (mm)5.00mm
Shank length2.1653in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
