M.A. Ford.

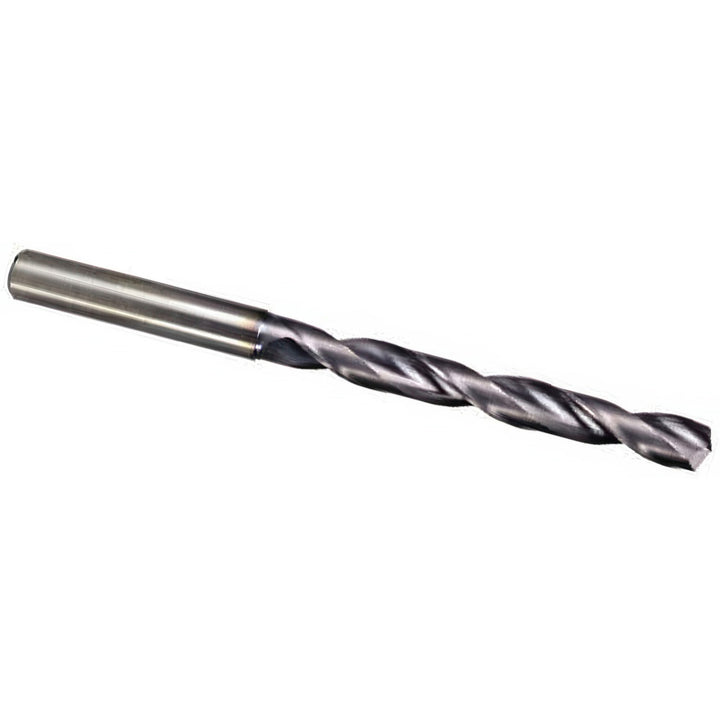

0.2480" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL2480A
MFR# 2XDCL2480ASeries 2XDCL
$170.10List $208.20
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The M.A. Ford. 2XDCL2480A is a 0.2480" Solid Carbide drill bit with a TiN finish, 142° point. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.015 mm
Drill bit size0.2480
Drill point angle degrees142
Drill point length (mm)0.98
Flute length (mm)60.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth (mm)48.00
Overall length (mm)109.00mm
Shank diameter (mm)8.00mm
Shank length1.9291in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
