M.A. Ford.

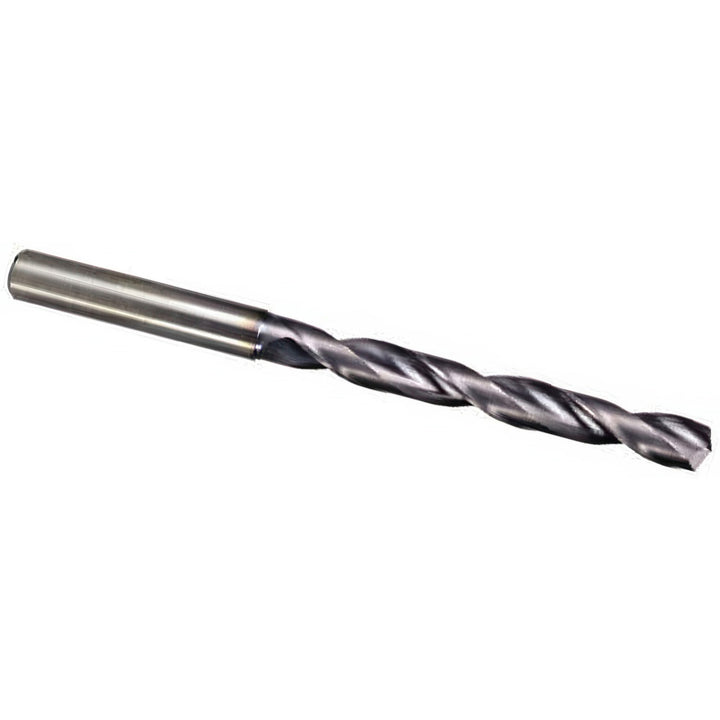

Letter F Solid Carbide Drill Bit, Coated, 142° point - M.A. Ford. 2XDCL2570A
MFR# 2XDCL2570ASeries 2XDCL
$170.10List $208.20
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The M.A. Ford. 2XDCL2570A is a Letter F Solid Carbide drill bit with a Coated finish, 142° point. 2-3/8 flute length. Series 2XDCL.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00059 in
Drill bit size0.2570
Drill bit size letterF
Drill point angle degrees142
Drill point length0.0400
Flute length in2-3/8
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth1.0000
Overall length4-5/16
Shank diameter in5/16
Shank length1.9350
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
