M.A. Ford.

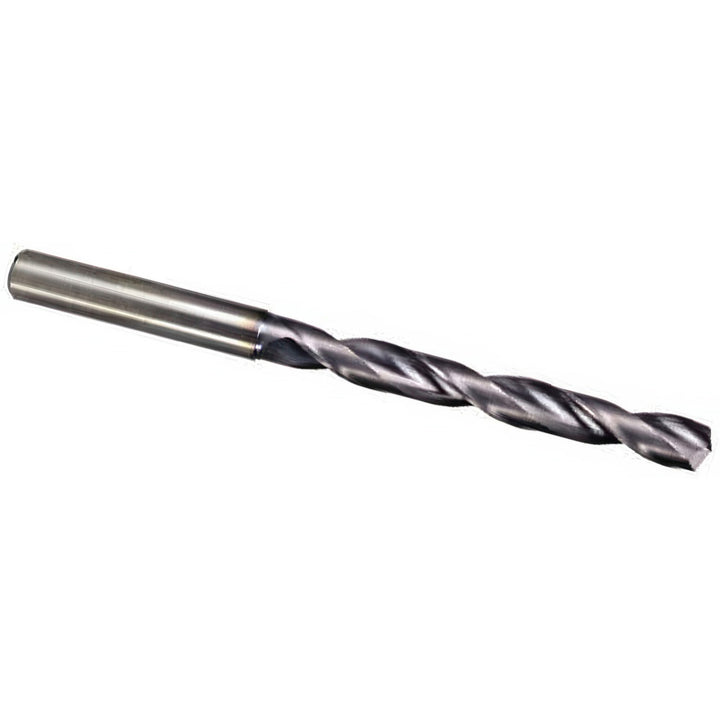

9/32" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL2812A
MFR# 2XDCL2812ASeries 2XDCL
$194.87List $238.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
CoatingTiN
Description
The M.A. Ford. 2XDCL2812A is a 9/32" Solid Carbide drill bit with a TiN finish, 142° point. 2-3/4 flute length. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00059 in
Drill bit size in9/32
Drill point angle degrees142
Drill point length0.0440
Flute length in2-3/4
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth2.0000
Overall length4-5/8
Shank diameter in5/16
Shank length1.8750
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
