M.A. Ford.
0.1142" Solid Carbide Screw Machine Drill Bit, Coated, 142° point - M.A. Ford. 2XDSS1142A
MFR# 2XDSS1142ASeries 2XDSS
$47.69List $58.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description

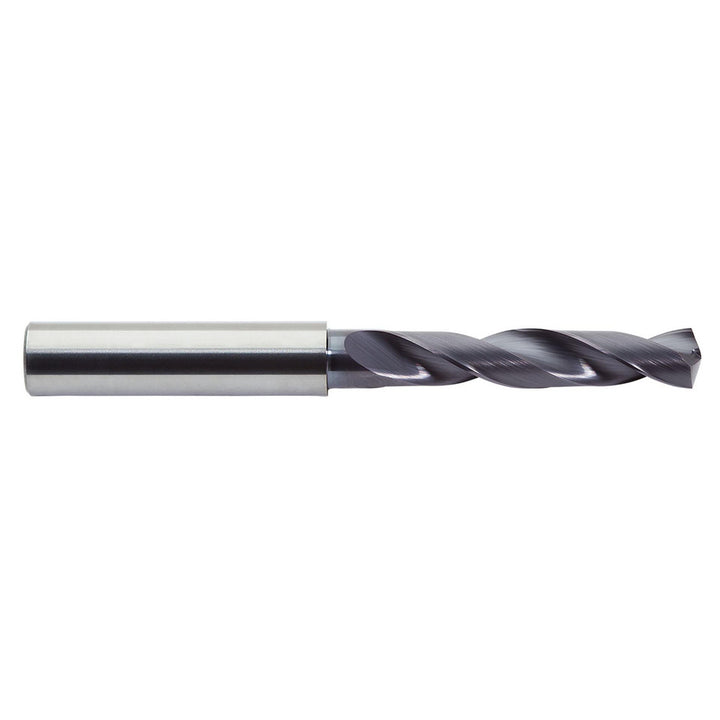

The M.A. Ford. 2XDSS1142A is a 0.1142" Solid Carbide Screw Machine drill bit with a Coated finish, 142° point. Suited for cast iron, stainless steel, steel. Series 2XDSS.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit size0.1142
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle142
Drill point length (mm)0.45
Flute by diameter ratio3xD
Flute length (mm)16.00
Flute typeSpiral
Maximum drilling depth (mm)12.00
Number of flutes2
Number of margins1
Overall length1.8110
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.1142
Shank length1.1811
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
