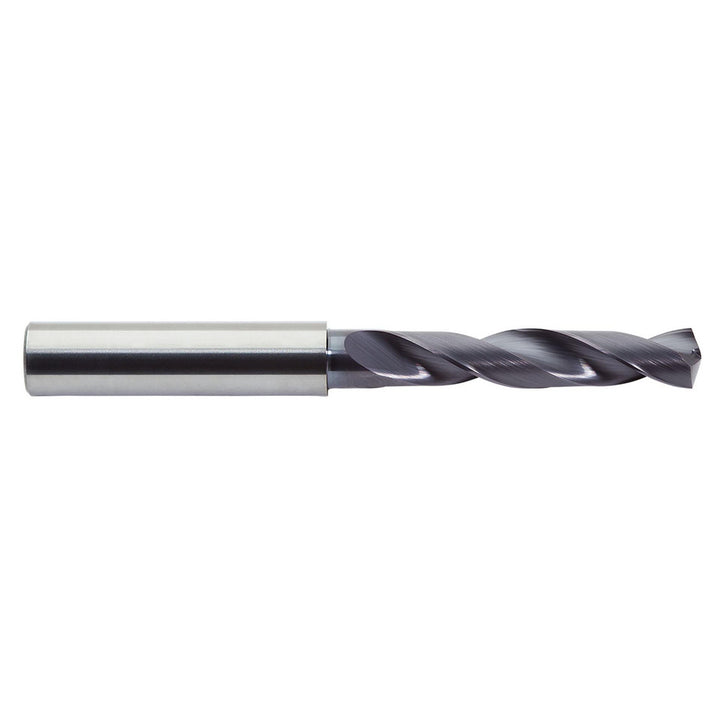

0.2677" Solid Carbide Screw Machine Drill Bit, Coated, 142° point - M.A. Ford. 2XDSS2677A

M.A. Ford.

0.2677" Solid Carbide Screw Machine Drill Bit, Coated, 142° point - M.A. Ford. 2XDSS2677A

MFR# 2XDSS2677ASeries 2XDSS

$97.28List $119.07 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The M.A. Ford. 2XDSS2677A is a 0.2677" Solid Carbide Screw Machine drill bit with a Coated finish, 142° point. Suited for cast iron, stainless steel, steel. Series 2XDSS.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.015 mm
Drill bit size0.2677
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle142
Drill point length (mm)1.05
Flute by diameter ratio3xD
Flute length (mm)35.00
Flute typeSpiral
Maximum drilling depth (mm)28.00
Number of flutes2
Number of margins1
Overall length3.2283
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.3150
Shank length1.8504
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
