M.A. Ford.

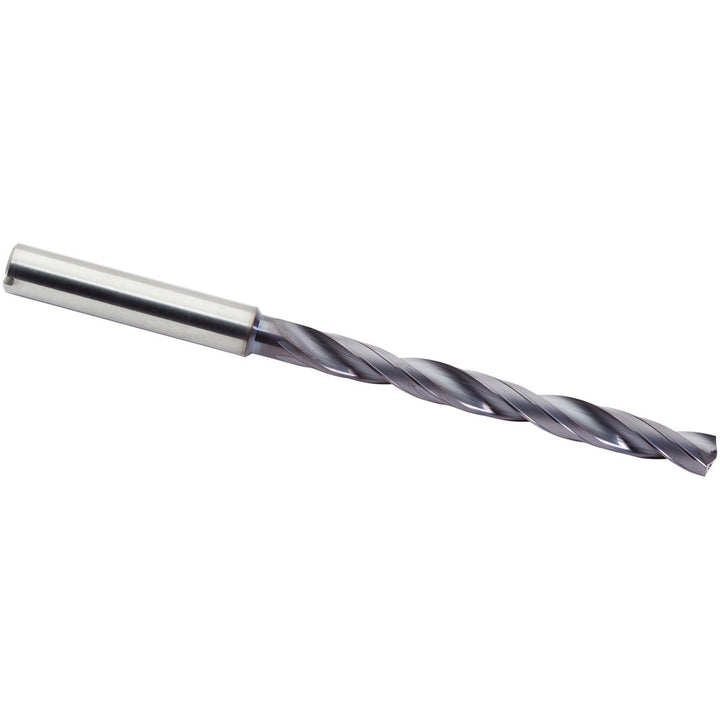

#29 Solid Carbide Drill Bit, ALtima Plus, 142° point - M.A. Ford. CXDCL1360AP
MFR# CXDCL1360AP
$134.12List $163.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingALtima Plus
Description
The M.A. Ford. CXDCL1360AP is a #29 Solid Carbide drill bit with a ALtima Plus finish, 142° point.
Specifications
Coating finishALtima Plus
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit size0.1360
Drill bit size wire#29
Drill point angle degrees142
Flute length (mm)44.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationCast Iron; Stainless Steel; Steel; Titanium
Overall length (mm)92
Point typeHelical
Shank diameter0.1575
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
