M.A. Ford.
1/4" Solid Carbide Drill Bit, ALtima Plus, 142° point - M.A. Ford. CXDCL2500AP
MFR# CXDCL2500AP
$183.70List $224.86
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
CoatingALtima Plus
Description

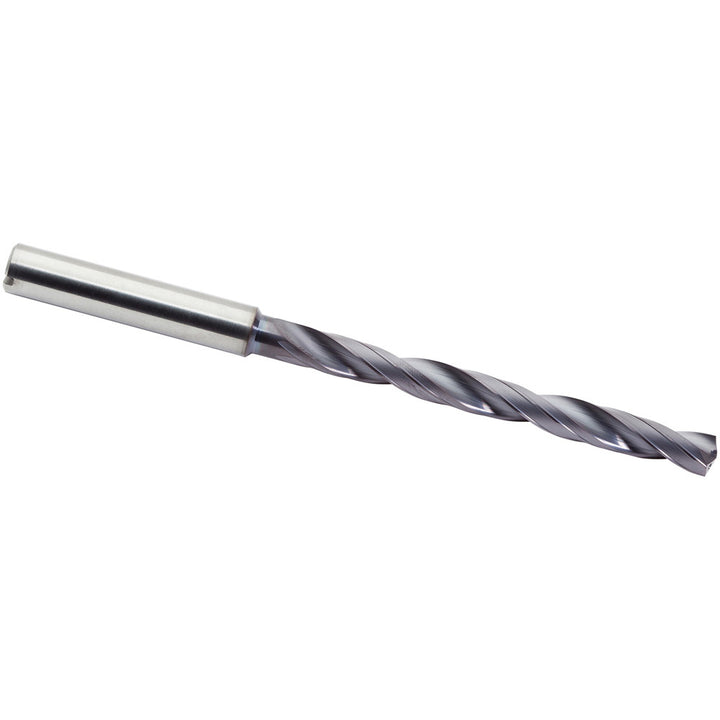

The M.A. Ford. CXDCL2500AP is a 1/4" Solid Carbide drill bit with a ALtima Plus finish, 142° point.
Specifications
Coating finishALtima Plus
Coolant throughYes
Cutting directionRight Hand
Double marginYes
Drill bit size in1/4
Drill point angle degrees142
Flute length (mm)76.00
Flute length x diameter ratio8xD
Flute typeHelical
Material applicationCast Iron; Stainless Steels; Steels; Titanium
Overall length (mm)118.00
Point typeHelical
Shank diameter0.3150
Shank typeStraight
Tool materialSolid Carbide
