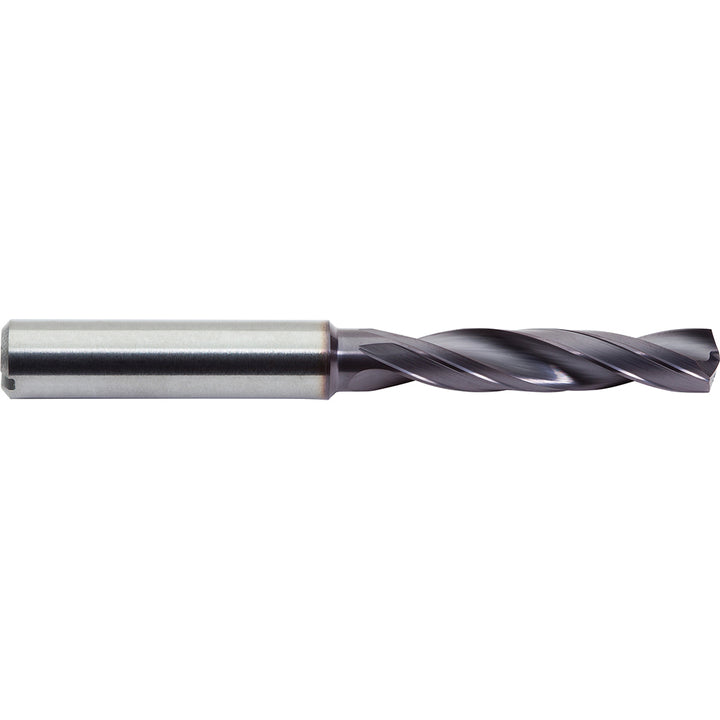

0.1732" Solid Carbide Drill Bit, ALtima Plus, 142° point - M.A. Ford. CXDCS 0440AP

M.A. Ford.

0.1732" Solid Carbide Drill Bit, ALtima Plus, 142° point - M.A. Ford. CXDCS 0440AP

MFR# CXDCS 0440APSeries CXDCS

$103.19List $126.31 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingALtima Plus

Description

The M.A. Ford. CXDCS 0440AP is a 0.1732" Solid Carbide drill bit with a ALtima Plus finish, 142° point. Suited for cast iron, stainless steels, steels, special alloys. Series CXDCS.

Specifications

Coating finishALtima Plus
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+.004/+.016 mm
Drill bit size0.1732
Drill point angle142
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Number of flutes2
Overall length (mm)66.00
Primary workpiece materialCast Iron; Stainless Steels; Steels; Special Alloys
Secondary workpiece materialCast Iron; Stainless Steels; Steels; Special Alloys
Shank diameter (mm)5.00
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
