M.A. Ford.

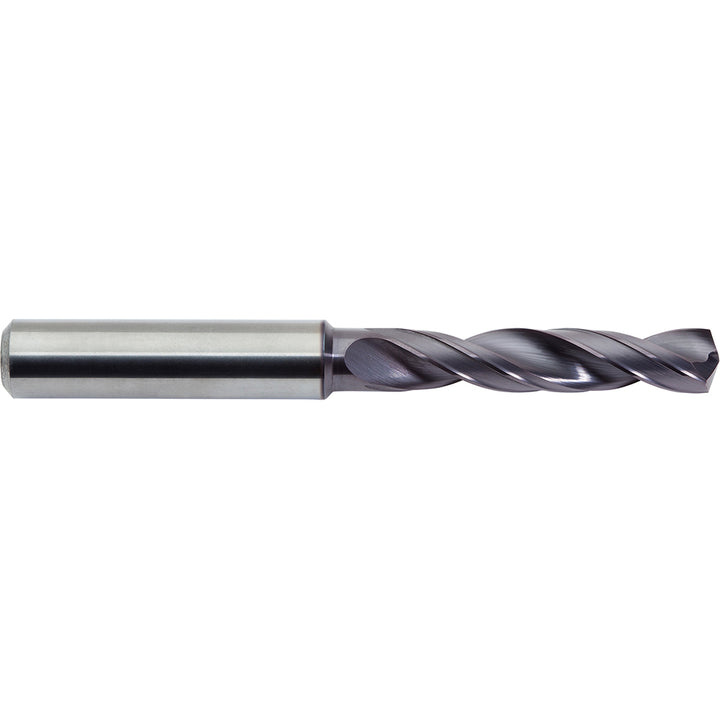

#29 Solid Carbide Stub Drill Bit, AlCrN, 142° point - M.A. Ford. CXDCS1360AP
MFR# CXDCS1360APSeries CXDCS
$99.23List $121.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlCrN
Description
The M.A. Ford. CXDCS1360AP is a #29 Solid Carbide Stub drill bit with a AlCrN finish, 142° point. Suited for cast iron, stainless steel, steel, titanium. Series CXDCS.
Specifications
Coating finishAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.1360
Drill bit size range0.1000 to 0.1500
Drill bit size wire#29
Drill length typeStub
Drill point angle142
Flute by diameter ratio3xD
Flute typeRegular Spiral
Number of flutes2
Number of margins2
Overall length2.4400
Point typeStandard
Primary workpiece materialCast Iron; Stainless Steel; Steel; Titanium
Shank diameter0.1562
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
