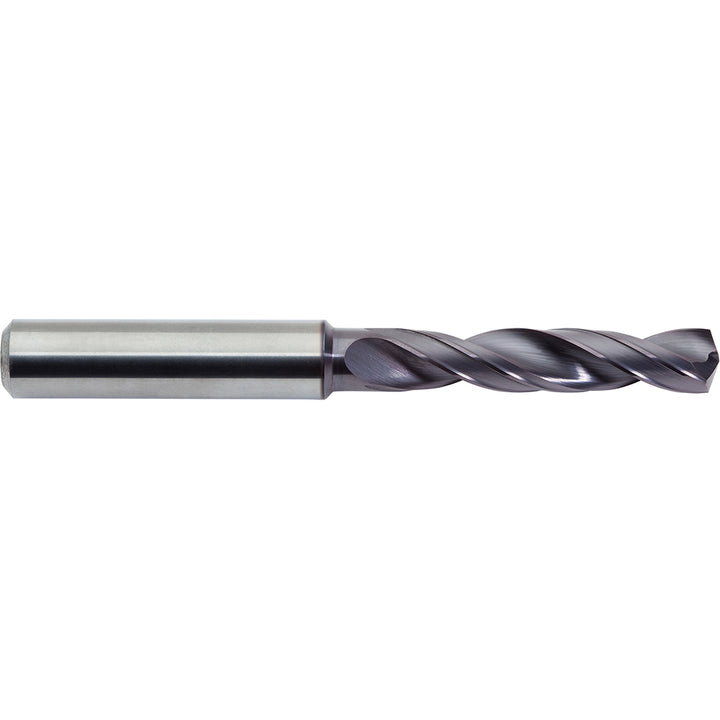

Letter F Solid Carbide Stub Drill Bit, ALtima Plus, 142° point - M.A. Ford. CXDCS2570AP
MFR# CXDCS2570AP
$89.21List $105.26
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima Plus
Description
The M.A. Ford. CXDCS2570AP is a Letter F Solid Carbide Stub drill bit with a ALtima Plus finish, 142° point. Suited for cast iron, stainless steel, steel, titanium.
Specifications
Coating finishALtima Plus
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle142
Flute by diameter ratio3xD
Flute typeHelical
Number of flutes2
Number of margins2
Overall length3.1100
Primary workpiece materialCast Iron; Stainless Steel; Steel; Titanium
Shank diameter0.3125
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRight Hand
Tool materialSolid Carbide
