Magafor

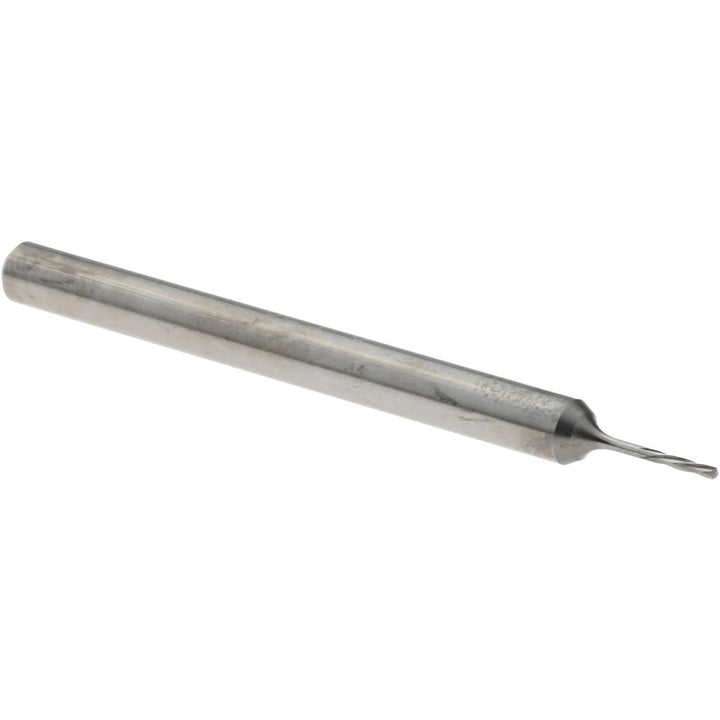

0.0224" Solid Carbide Reamer - Magafor 88861000570
MFR# 88861000570Series 8610
$96.81List $98.02
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Magafor 88861000570 is a 0.0224 Solid Carbide reamer. 1-17/32 overall length.
Specifications
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length in3/32
Flute typeSpiral
Number of flutes4
Overall length in1-17/32
Over under size reamerNo
Reamer diameter0.0224
Reamer diameter range0 - 0.0499
Reamer diameter tolerance0.0002 in
Reamer diameter wire#74
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialSolid Carbide
