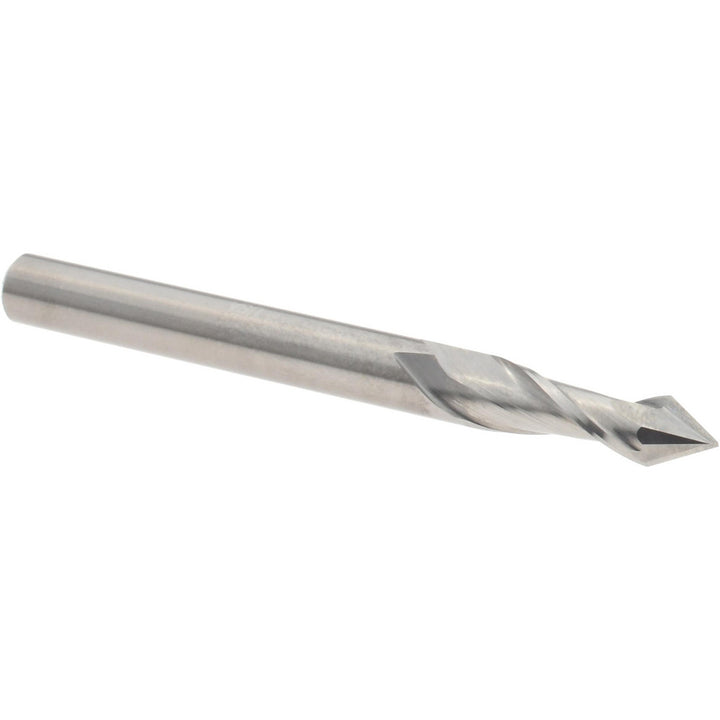

3/16" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 12201

Melin Tool

3/16" 2-Flute Solid Carbide Drill Mill End Mill - Melin Tool 12201

MFR# 12201Series AMG-__-DP60

$22.25List $28.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Melin Tool 12201 is a 3/16 2-flute Solid Carbide (Micrograin) drill mills end mill. 5/8 length of cut, 2 overall length. Series AMG-__-DP60.

Specifications

Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in5/8
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2
Point angle60
Primary material applicationGroove Milling
Shank diameter in3/16
Shank diameter tolerance+0.0005 - -0.0005 in
