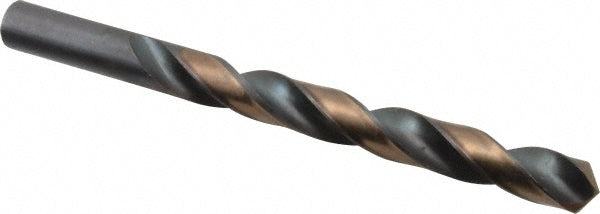

15/32" High Speed Steel Drill Bit, Oxide, 118° point - Michigan Drill 314 15/32

Michigan Drill

15/32" High Speed Steel Drill Bit, Oxide, 118° point - Michigan Drill 314 15/32

MFR# 314 15/32Series 314

$13.47List $17.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/32
Flutes2
CoatingOxide

Description

The Michigan Drill 314 15/32 is a 15/32" High Speed Steel drill bit with a Oxide finish, 118° point. 4-5/16 flute length, 5-3/4in overall length. Series 314.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Double marginYes
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio9xD
Flute length in4-5/16
Flute typeSpiral
Maximum drilling depth in4-5/16
Number of flats0
Number of flutes2
Overall length in5-3/4in
Point typeSplit Point
Shank diameter in15/32in
Shank length in1-7/16in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
