CNMA120404 Carbide Insert, Grade HTi10 - Mitsubishi 100694
MFR# 100694ISO/ANSI# CNMA120404Cat# CNMA431Series CNMA
$11.99List $15.37
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeHTi10
MaterialCarbide
Description

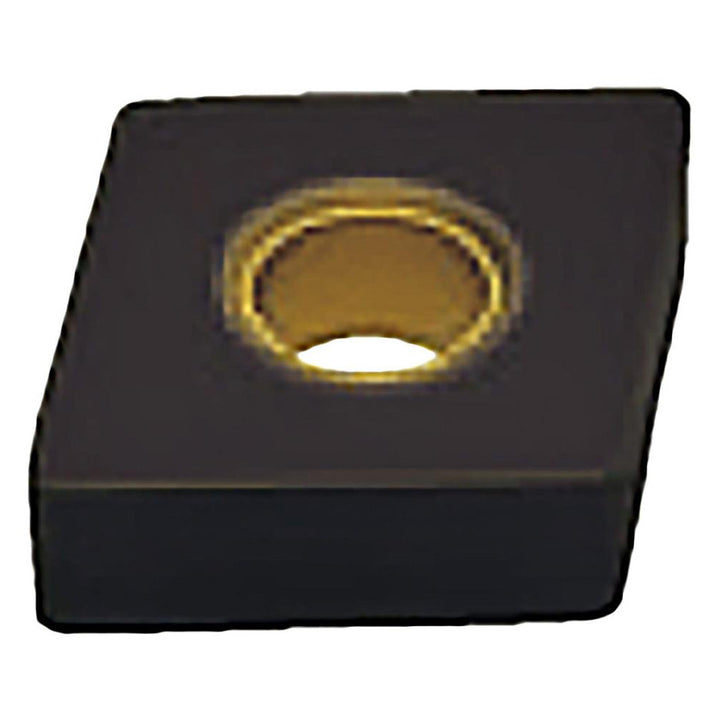

The Mitsubishi 100694 is a CNMA120404 carbide indexable insert, grade HTi10. Suited for non-ferrous metal.
Specifications
Ansi insert codeCNMA431
Ansi size code431
Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120404
Iso insert codeCNMA120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMA431
Manufacturer gradeHTi10
Material gradeN10; N20
Maximum depth of cut0.1692
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
