Mitsubishi

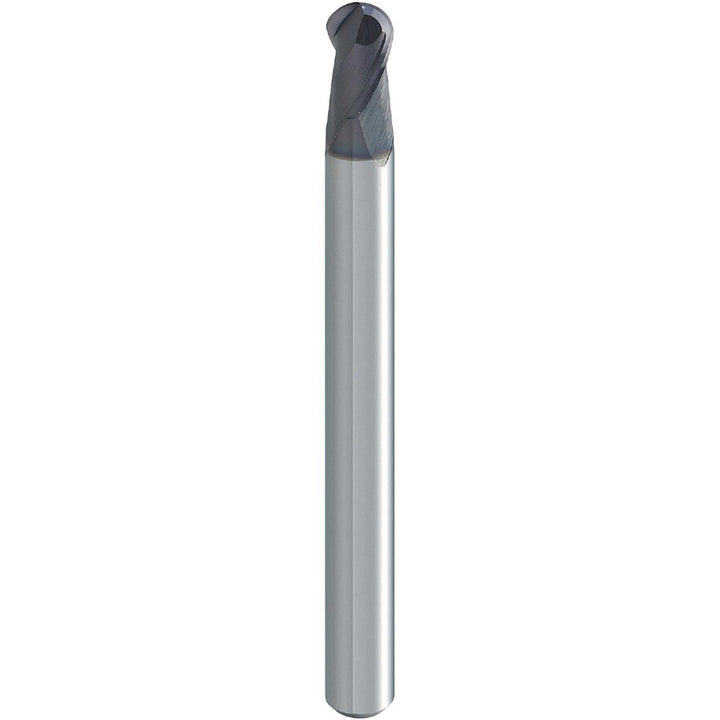

0.0472" 2-Flute Solid Carbide Ball End Mill, AlTiCrN - Mitsubishi 10482247
MFR# 10482247Series MP2
$49.48List $63.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingAlTiCrN
Description
The Mitsubishi 10482247 is a 0.0472 2-flute Solid Carbide (Carbide) ball end mill with a AlTiCrN finish for longer tool life. Suited for steel. 0.0709 length of cut, 1.7717 overall length. Series MP2.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiCrN
Coating finish familyAlTiCrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.0709
Length typeShort
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter0.0472
Neck length0.0709
Nose radius0.0236
Number of flutes2
Overall length1.7717
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; High-Temp Alloy; High-Temp Alloy; Aluminum & Non-Ferrous
Shank diameter0.1575
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
