Mitsubishi

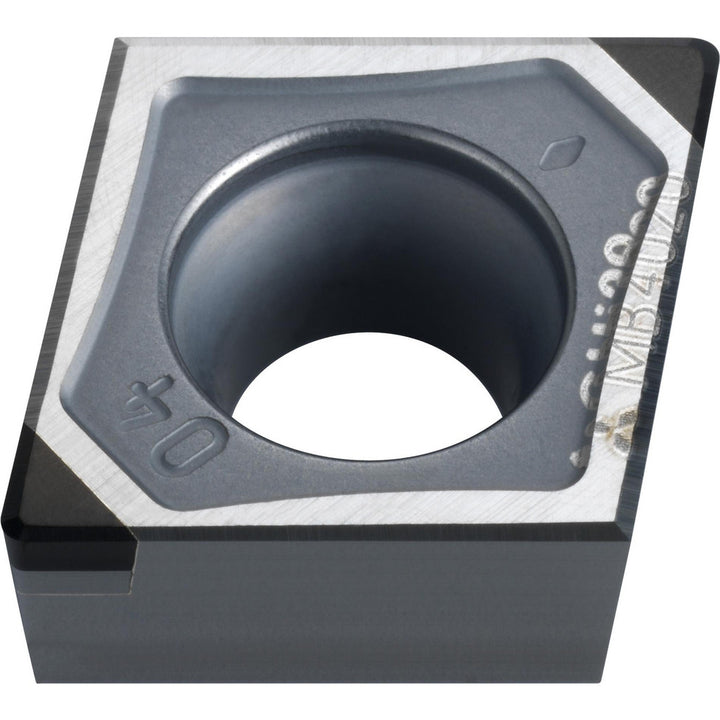

Rhombic 80 3/8" IC Cubic Boron Nitride (CBN) Insert, Grade MB8120 - Mitsubishi 10598825
MFR# 10598825
$80.95List $103.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRhombic 80
GradeMB8120
MaterialCubic Boron Nitride (CBN)
Description
The Mitsubishi 10598825 is a cubic boron nitride (cbn) indexable insert, grade MB8120. Suited for hardened steel.
Specifications
Chip breakerPressed
Clearance codeC
Coating processCBN
Corner radius0.0315
Cutting edge styleChamfered and Rounded
Full radiusNo
Included angle80.00
Inscribed circle in3/8
Insert handNeutral
Insert materialCubic Boron Nitride (CBN)
Insert shapeRhombic 80
Insert size code3
Insert styleCCGW
Insert thickness in5/32
Manufacturer gradeMB8120
Number of cutting edges2
Primary workpiece materialHardened Steel
RakePositive
Rake angle7
Relief angle7.000
Single or multi tippedMulti Tipped
Tip length0.0787
Tolerance codeG
Wiper edgeNo
