Mitsubishi

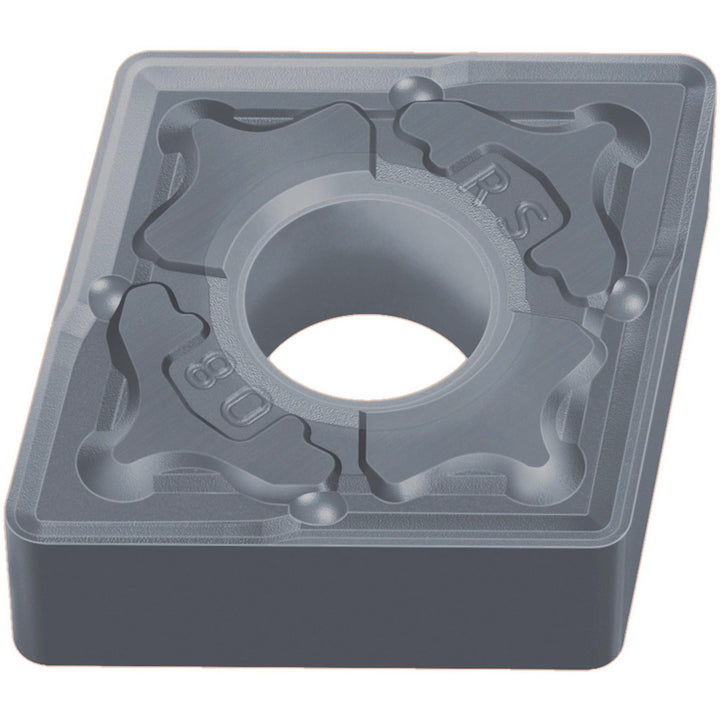

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade MP9025, PVD - Mitsubishi 10600658
MFR# 10600658ISO/ANSI# CNMG120412
$15.01List $19.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeMP9025
MaterialCarbide
CoatingPVD
Description
The Mitsubishi 10600658 is a carbide indexable insert, grade MP9025, PVD coated.
Specifications
Ansi insert codeCNMG433
Ansi size code433
Chip breakerRS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishPVD
Corner radius in3/64
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to High Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code4
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120412
Iso size code120412
Manufacturer gradeMP9025
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
