Mitsubishi

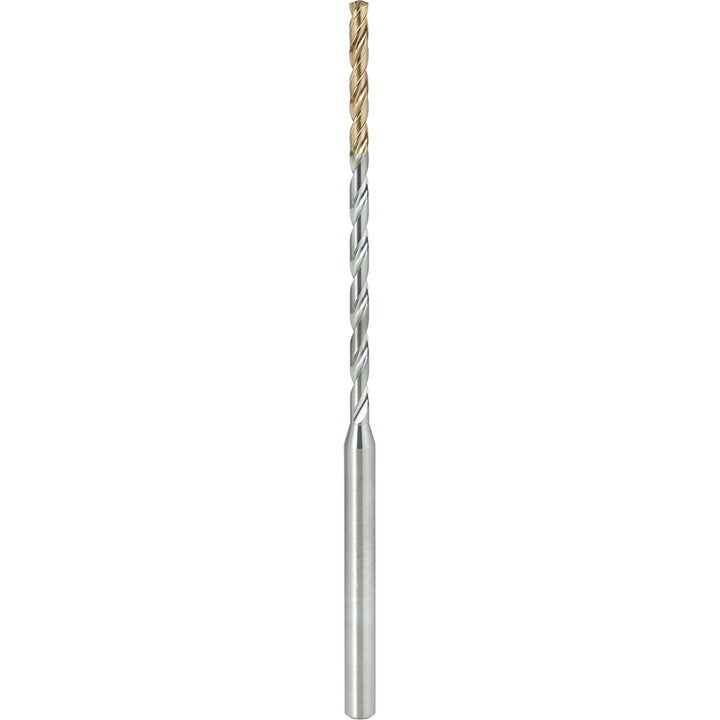

0.0472" Solid Carbide Drill Bit, TiAlN, 139° point - Mitsubishi 10634776
MFR# 10634776Series DVAS
$342.04List $423.94
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Mitsubishi 10634776 is a 0.0472" Solid Carbide drill bit with a TiAlN finish, 139° point. Suited for steel. Series DVAS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.0472
Drill point angle139
Flute by diameter ratio20xD
Flute length1.0945
Flute typeSpiral
Maximum drilling depth0.9528
Number of flutes2
Overall length2.7953
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hardened Steel; Copper; Cast Iron; Carbon Steel; Brass; Aluminum; Aluminum Alloy; Titanium; Titanium Alloy
Shank diameter0.1575
Shank length1.4961
Shank typeStraight-Cylindrical
StandardsISO
Tool applicationVery Small Hole Drilling; Deep Hole Drilling
Tool materialSolid Carbide
Web configurationParallel
Web thinningX-Thinned
