Mitsubishi

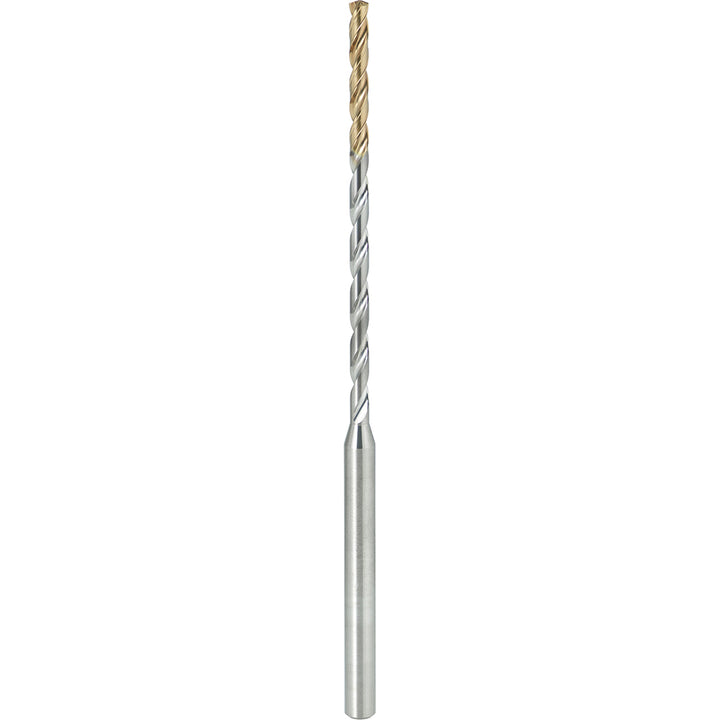

0.0591" Solid Carbide Drill Bit, TiAlN, 139° point - Mitsubishi 10634806
MFR# 10634806Series DVAS
$342.04List $423.94
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Mitsubishi 10634806 is a 0.0591" Solid Carbide drill bit with a TiAlN finish, 139° point. Suited for steel. Series DVAS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.0591
Drill point angle139
Flute by diameter ratio20xD
Flute length1.3661
Flute typeSpiral
Maximum drilling depth1.1929
Number of flutes2
Overall length2.9528
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hardened Steel; Copper; Cast Iron; Carbon Steel; Brass; Aluminum; Aluminum Alloy; Titanium; Titanium Alloy
Shank diameter0.1575
Shank length1.4016
Shank typeStraight-Cylindrical
StandardsISO
Tool applicationVery Small Hole Drilling; Deep Hole Drilling
Tool materialSolid Carbide
Web configurationParallel
Web thinningX-Thinned
