Mitsubishi

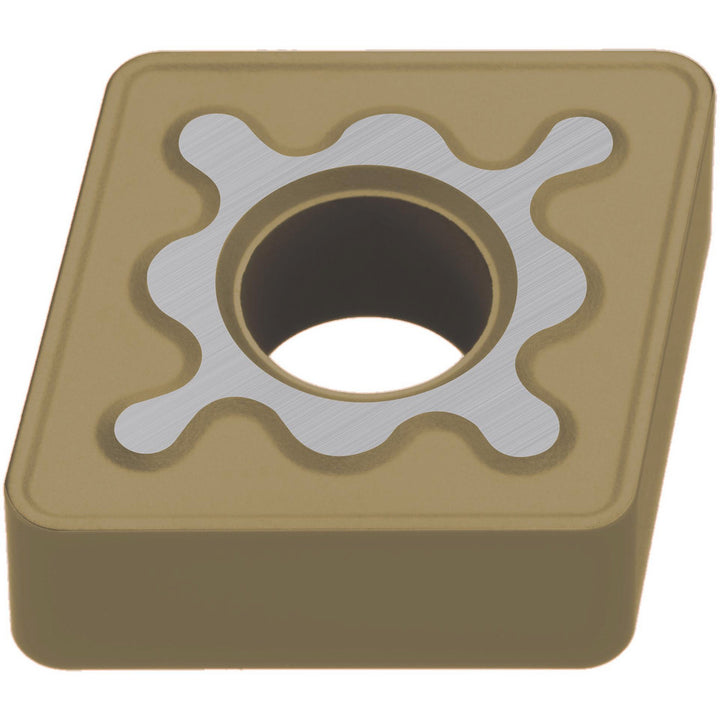

Rhombic 1/2" IC Carbide Insert, Grade MC6125, CVD - Mitsubishi 10636930
MFR# 10636930
$18.70List $23.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRhombic
GradeMC6125
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 10636930 is a carbide indexable insert, grade MC6125, CVD coated.
Specifications
Chip breakerGH
Clearance codeN
Coating finishCVD
Corner radius in3/64
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeRhombic
Insert size code4
Insert styleCNMG
Insert thickness in3/16
Manufacturer gradeMC6125
Number of cutting edges4
Relief angle0.000
Tolerance codeM
