Mitsubishi

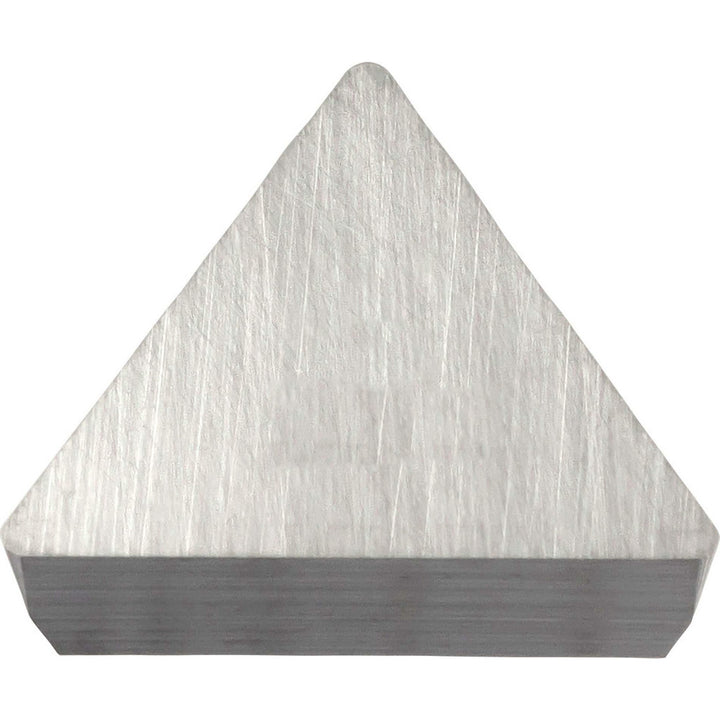

T - Triangle 1/4" IC Carbide Insert, Grade HTI10 - Mitsubishi 108343
MFR# 108343ISO/ANSI# TPG110304Cat# TPGN110304 HTI10Series HTI10
$11.59List $14.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeHTI10
MaterialCarbide
Description
The Mitsubishi 108343 is a carbide indexable insert, grade HTI10. Suited for cast iron, aluminum & non-ferrous.
Specifications
Ansi insert codeTPG221
Ansi size code221
Chip breakerFlat Top
Chip breaker operationMedium Machining
Clearance codeP
Coating processUncoated
Corner radius in1/64
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTPG
Insert thickness in1/8
Iso insert codeTPG110304
Iso size code110304
Manufacturers catalog numberTPGN110304 HTI10
Manufacturer gradeHTI10
Number of cutting edges3
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous
RakePositive
Rake angle11
Relief angle11
Side clearancePositive
Single or multi tippedMulti Tipped
Tolerance codeG
Wiper edgeNo
