Mitsubishi

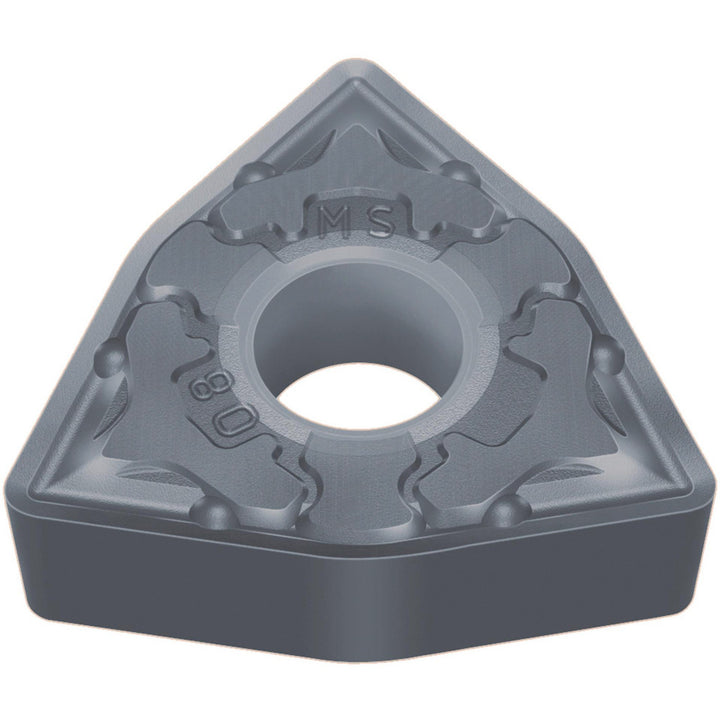

Trigon 80 1/2" IC Carbide Insert, Grade US735, CVD - Mitsubishi 109124
MFR# 109124
$18.70List $23.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon 80
GradeUS735
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 109124 is a carbide indexable insert, grade US735, CVD coated.
Specifications
Chip breakerMS
Clearance codeN
Coating finishCVD
Corner radius in1/64
Included angle80.00
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeTrigon 80
Insert size code4
Insert styleWNMG
Insert thickness in3/16
Manufacturer gradeUS735
Number of cutting edges6
Relief angle0.000
Tolerance codeM
