Mitsubishi

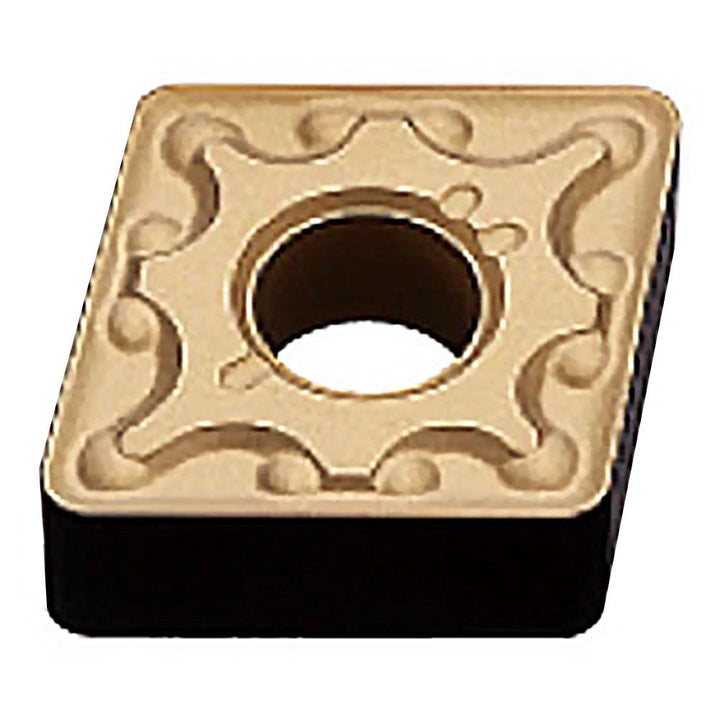

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade US7020 - Mitsubishi 135036
MFR# 135036ISO/ANSI# CNMG120404
$18.70List $23.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeUS7020
MaterialCarbide
Description
The Mitsubishi 135036 is a carbide indexable insert, grade US7020.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerG
Clearance codeN
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeUS7020
Relief angle0
Side clearanceNegative
Tolerance codeM
