QOMT1651R-M2 Solid Carbide Insert, Grade VP15TF, AlTiN - Mitsubishi 189974
MFR# 189974ISO/ANSI# QOMT1651R-M2Cat# QOMT1651R-M2Series QOMT
$23.02List $29.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeVP15TF
MaterialSolid Carbide
CoatingAlTiN
Description

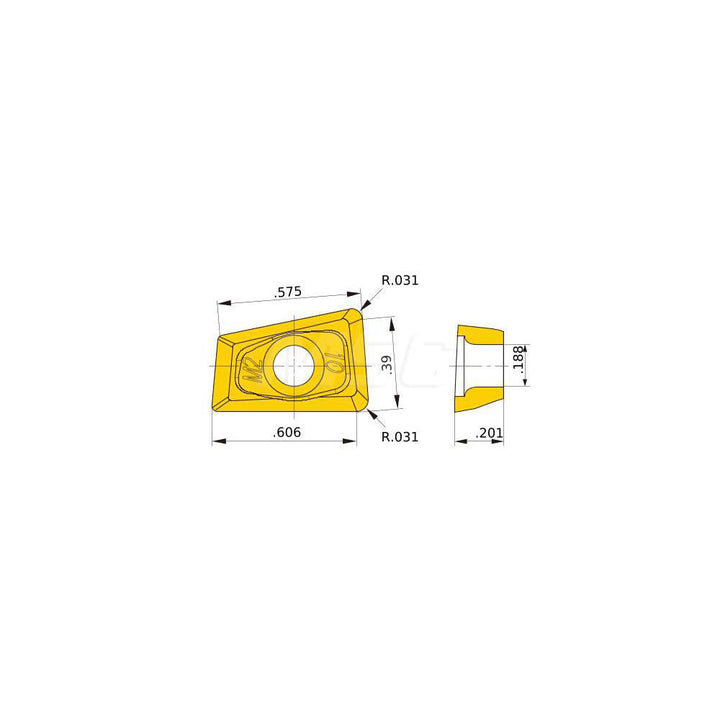

The Mitsubishi 189974 is a QOMT1651R-M2 solid carbide indexable insert, grade VP15TF, AlTiN coated. Suited for cast iron, stainless steel, steel.
Specifications
Ansi codeQOMT1651R-M2
Chip breakerM2
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge effective length0.6060
Hole diameter0.1882
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code1651
Insert styleQOMT
Iso codeQOMT1651R-M2
Manufacturers catalog numberQOMT1651R-M2
Manufacturer gradeVP15TF
Material applicationCast Iron; Stainless Steel; Steel; Steel; Superalloys & Titanium
Multi use toolNo
Primary workpiece materialCast Iron; Stainless Steel; Steel
RakePositive
Secondary workpiece materialSteel; Superalloys & Titanium
Single or double sided insertSingle
StandardsISO
Thickness0.2000
