Mitsubishi

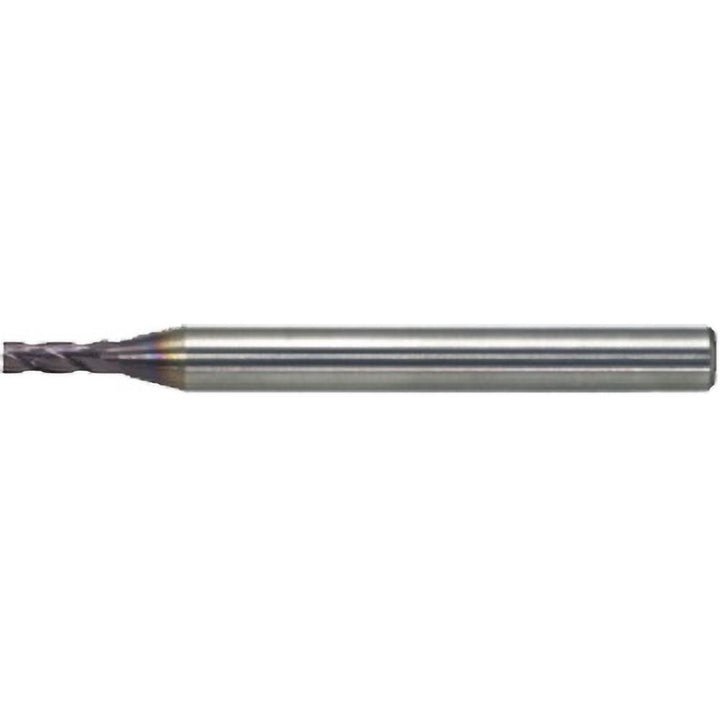

0.2362" 4-Flute Solid Carbide Square End Mill, AlTiN - Mitsubishi 219580

MFR# 219580Series M-Star Endmill MS4MC

$50.59List $62.61 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Mitsubishi 219580 is a 0.2362 4-flute Solid Carbide (Carbide) square end mill with a AlTiN finish for longer tool life. Suited for steel, cast iron, hardened materials. 0.5906 length of cut, 1.9685 overall length. Series M-Star Endmill MS4MC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut0.5906

Length typeMedium

Material gradeCarbide

Mill diameter0.2362

Mill diameter tolerance-0.020; 0

Neck length0.5906

Number of flutes4

Overall length1.9685

Primary workpiece materialSteel; Cast Iron; Hardened Materials

Secondary workpiece materialHardened Materials; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy

Shank diameter0.2362

Shank diameter toleranceh6

Shank typeStraight

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
