Mitsubishi

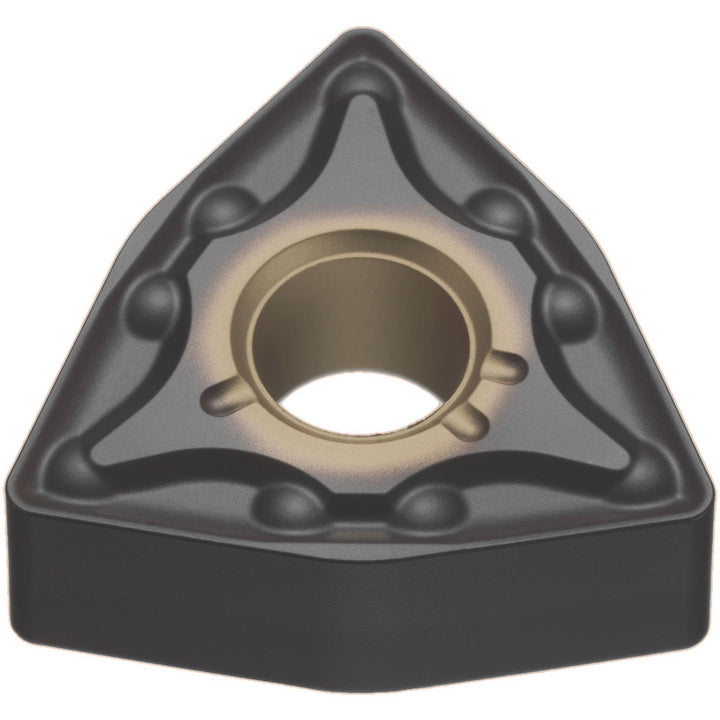

Trigon 1/2" IC Carbide Insert, Grade MC5125, CVD - Mitsubishi 22905352
MFR# 22905352
$18.70List $23.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeMC5125
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 22905352 is a carbide indexable insert, grade MC5125, CVD coated.
Specifications
Chip breakerMA
Clearance codeN
Coating finishCVD
Corner radius in1/32
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeTrigon
Insert size code4
Insert styleWNMG
Insert thickness in3/16
Manufacturer gradeMC5125
Number of cutting edges6
Relief angle0.000
Tolerance codeM
