Mitsubishi

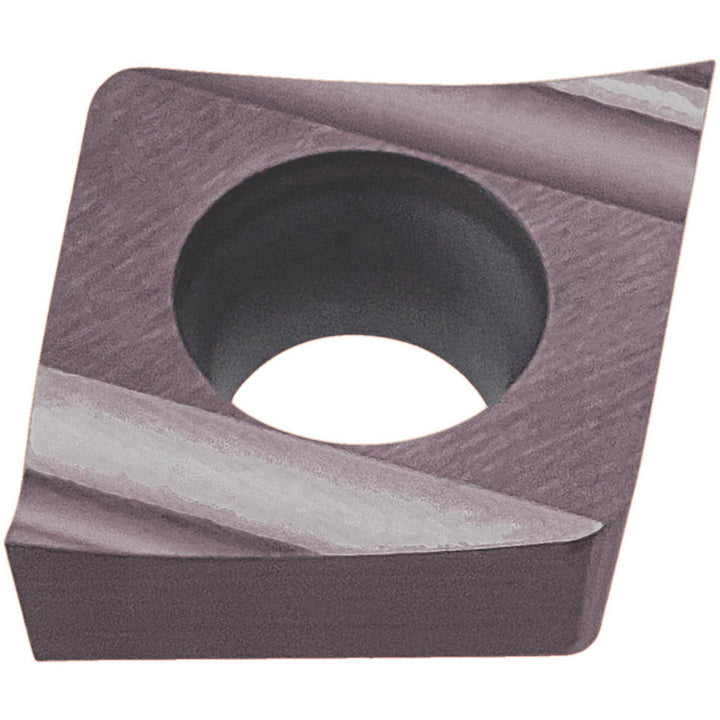

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade VP15TF, PVD - Mitsubishi 258001
MFR# 258001ISO/ANSI# CCET09T301
$18.17List $23.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeVP15TF
MaterialCarbide
CoatingPVD
Description
The Mitsubishi 258001 is a carbide indexable insert, grade VP15TF, PVD coated.
Specifications
Ansi insert codeCCET32.50.2
Ansi size code32.50.2
Chip breakerSR
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishPVD
Corner radius0.0039
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle80
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3
Insert styleCCET
Insert thickness in5/32
Iso insert codeCCET09T301
Iso size code09T301
Manufacturer gradeVP15TF
Number of cutting edges2
Relief angle7
Side clearancePositive
Tolerance codeE
