Mitsubishi

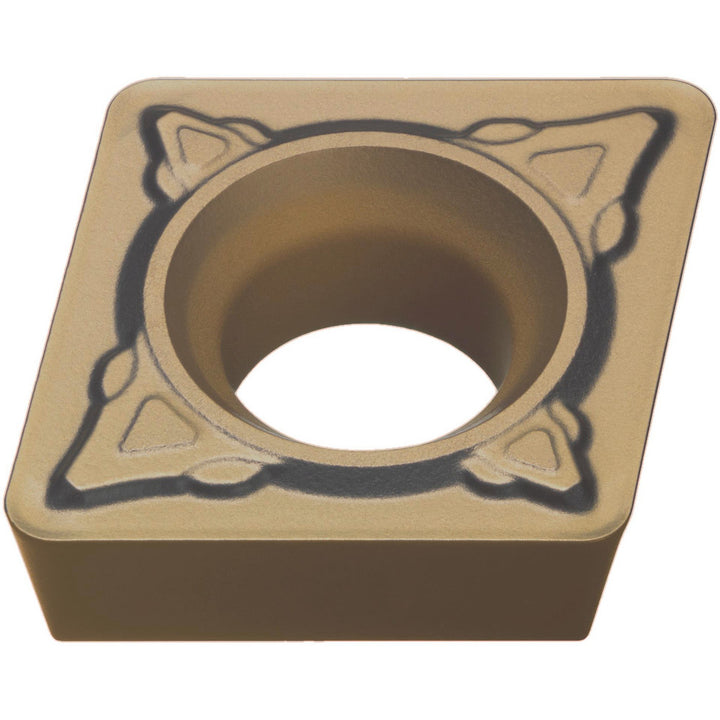

C - Diamond (Rhombic) 80-Deg 5/16" IC Carbide Insert, Grade US735, CVD - Mitsubishi 293931
MFR# 293931ISO/ANSI# CPMH080204
$21.99List $28.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/16
ShapeC - Diamond (Rhombic) 80-Deg
GradeUS735
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 293931 is a carbide indexable insert, grade US735, CVD coated.
Specifications
Ansi insert codeCPMH2.51.51
Ansi size code2.51.51
Chip breakerSV
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in5/16
Insert handNeutral
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2.5
Insert styleCPMH
Insert thickness in3/32
Iso insert codeCPMH080204
Iso size code080204
Manufacturer gradeUS735
Number of cutting edges2
Relief angle11
Side clearancePositive
Tolerance codeM
