Mitsubishi

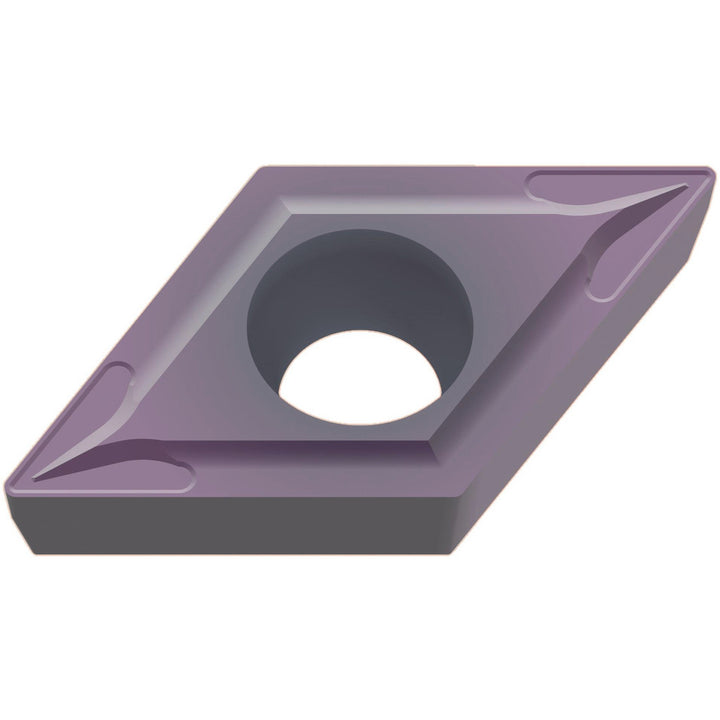

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade VP15TF, PVD - Mitsubishi 314747
MFR# 314747ISO/ANSI# DCMT
$14.44List $18.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeVP15TF
MaterialCarbide
CoatingPVD
Description
The Mitsubishi 314747 is a carbide indexable insert, grade VP15TF, PVD coated.
Specifications
Ansi insert codeDCMT21.51
Ansi size code21.51
Chip breakerSV
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishPVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code2
Insert styleDCMT
Insert thickness in3/32
Iso insert codeDCMT
Manufacturer gradeVP15TF
Number of cutting edges2
Relief angle7
Side clearancePositive
Tolerance codeM
