Mitsubishi

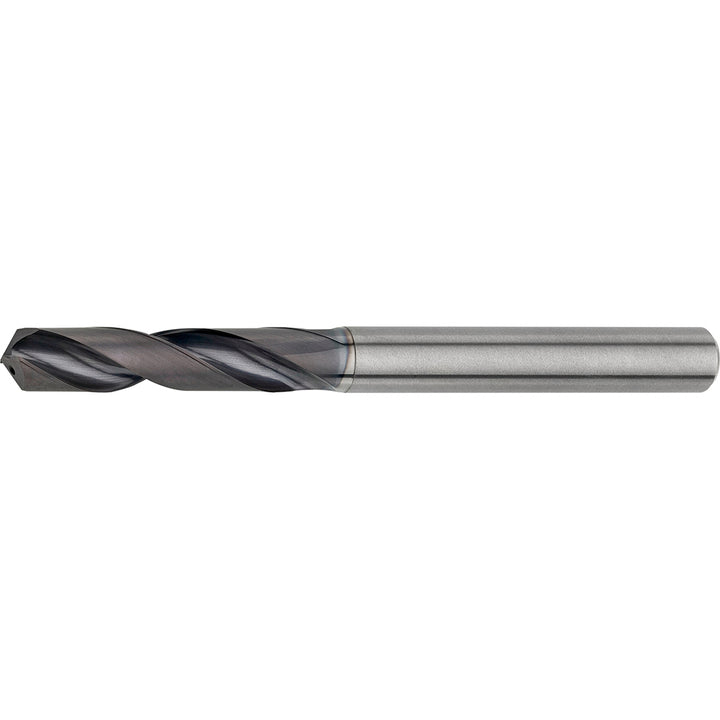

0.0200" Solid Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 459233
MFR# 459233Series MWS
$105.99List $131.37
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Mitsubishi 459233 is a 0.0200" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MWS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.0200
Drill point angle140
Flute by diameter ratio1xD
Flute length0.1020
Flute typeSpiral
Maximum drilling depth0.0240
Number of flutes2
Overall length1.7750
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialAlloy Steel; Austenitic Stainless Steel; Brass; Bronze Alloy; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hard Material; Hardened Materials; Hardened Steel; High Temperature Alloys; Iron Alloy; Magnesium; Nickel; Nickel Alloy; Soft Metal; Special Alloy
Shank diameter in1/8
Shank length1.4760
Shank typeStraight-Cylindrical
StandardsISO
Tool applicationVery Small Hole Drilling
Tool materialSolid Carbide
Web configurationParallel
Web thinningX-Thinned
