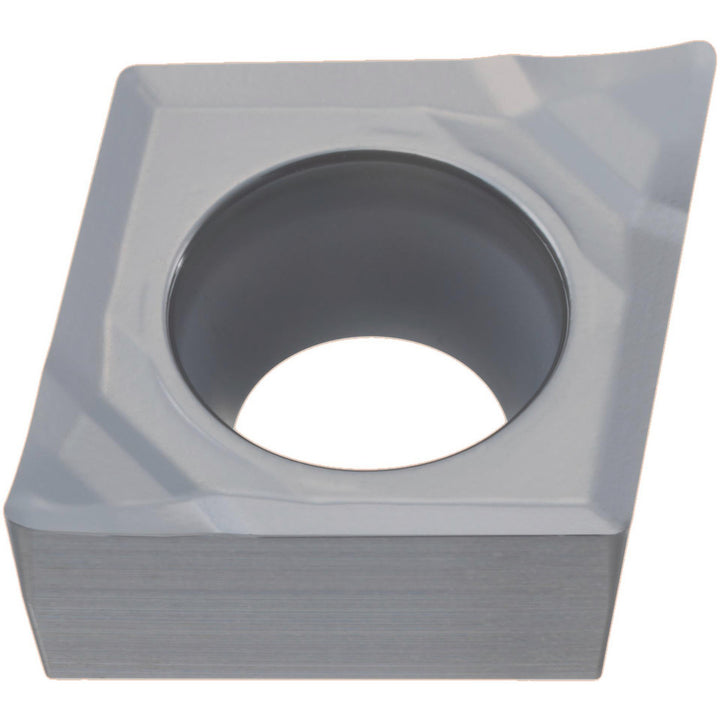

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade HTI10 - Mitsubishi 461456

Mitsubishi

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade HTI10 - Mitsubishi 461456

MFR# 461456ISO/ANSI# CCGT060204

$17.12List $21.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeHTI10
MaterialCarbide

Description

The Mitsubishi 461456 is a carbide indexable insert, grade HTI10.

Specifications

Ansi insert codeCCGT21.51
Ansi size code21.51
Chip breakerAZ
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2
Insert styleCCGT
Insert thickness in3/32
Iso insert codeCCGT060204
Iso size code060204
Manufacturer gradeHTI10
Number of cutting edges2
Relief angle7
Side clearancePositive
Tolerance codeG
