Mitsubishi

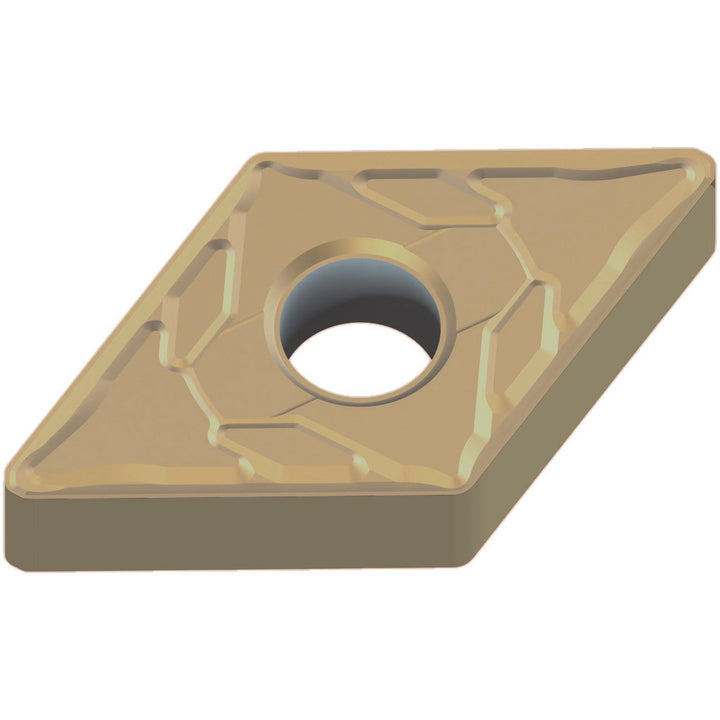

D - Diamond (Rhombic) 55-Deg 1/2" IC Cermet Insert, Grade MP3025, PVD - Mitsubishi 615726
MFR# 615726ISO/ANSI# DNMX150408
$19.27List $24.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeMP3025
MaterialCermet
CoatingPVD
Description
The Mitsubishi 615726 is a cermet indexable insert, grade MP3025, PVD coated.
Specifications
Ansi insert codeDNMX432
Ansi size code432
Chip breakerSW
Chip breaker operationWiper - Light Machining
Clearance codeN
Coating finishPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert materialCermet
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code4
Insert styleDNMX
Insert thickness in3/16
Iso insert codeDNMX150408
Iso size code150408
Manufacturer gradeMP3025
Number of cutting edges2
Relief angle0
Side clearanceNegative
Tolerance codeM
