Mitsubishi

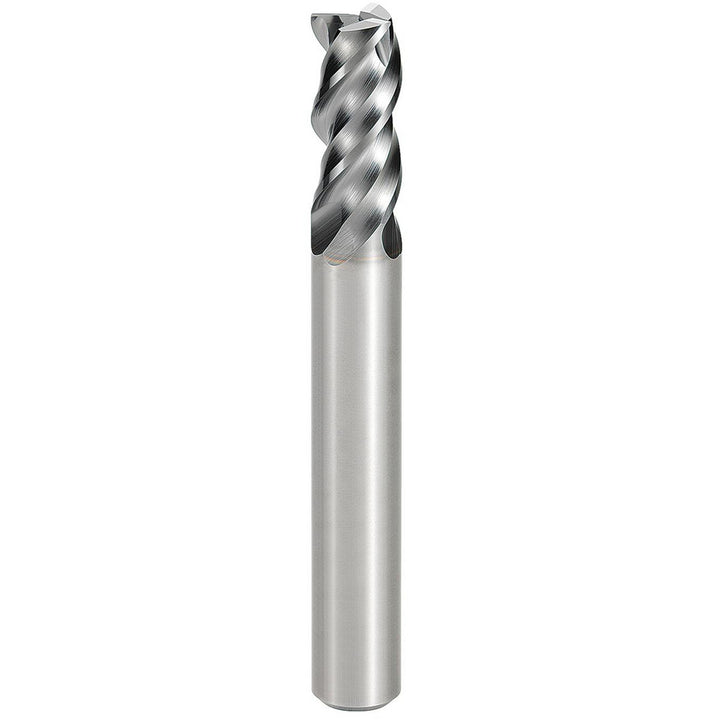

0.1299" 3-Flute Solid Carbide Square End Mill, AlCrN - Mitsubishi 621835
MFR# 621835Series VQ Endmill VQMHZV
$43.88List $56.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlCrN
Description
The Mitsubishi 621835 is a 0.1299 3-flute Solid Carbide (Carbide) square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, aluminum & non-ferrous, high-temp alloy. 0.2756 length of cut, 1.9685 overall length. Series VQ Endmill VQMHZV.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlCrN
Coating finish familyAlCrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle42-45
Length of cut0.2756
Length typeMedium
Material gradeCarbide
Mill diameter0.1299
Mill diameter tolerance-0.020; 0
Neck length0.2756
Number of flutes3
Overall length1.9685
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy
Secondary workpiece materialAluminum & Non-Ferrous
Shank diameter0.2362
Shank diameter toleranceh6
Shank typeStraight
Single or double endSingle
System of measurementMetric
Variable helixYes
Variable indexYes
